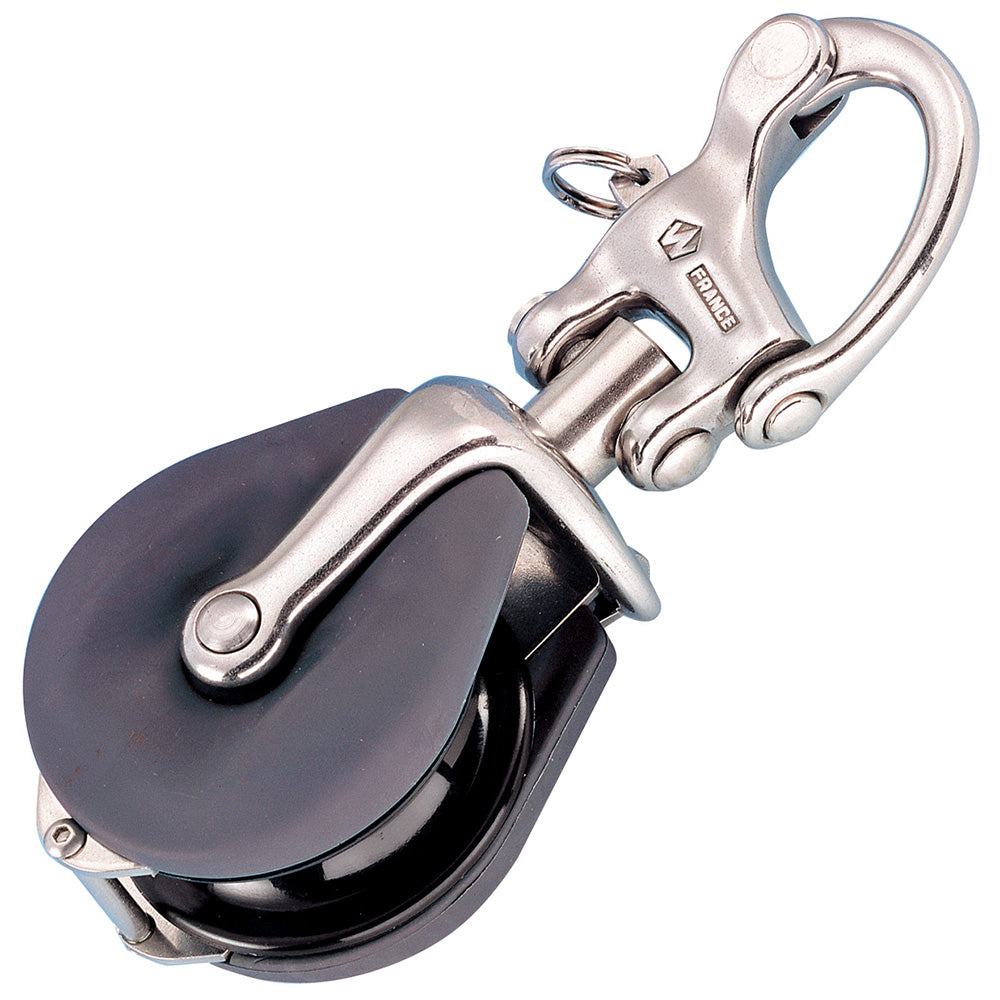

Name: Wichard Snatch Block w/Snap Shackle - Max Rope Size 12mm (15/32") [34500W]
Brand: Wichard Marine
SKU: 34500W-WIC
Price: 292.09 USD
Availability: InStock

Wichard Snatch Block w/Snap Shackle - Max Rope Size 12mm (15/32") [34500W]

$292.09

Wichard Snatch Block w/Snap Shackle - Max Rope Size 12mm (15/32") [34500W]

$292.09

Shipping calculated at checkout.

Snatch Block with Snap Shackle - Max Rope Size 12mm (15/32")

Features:

Free rotation thanks to snap shackle
Very strong closing system
Easy opening by simply pulling on the plunger pin
Shock and scratch-resistant thanks to the elastomer molded cheeks

Applications:

Changing sheets
Spinnaker sheet deflector blocks

Materials:

HR 17.4 PH forged stainless steel arm
Elastomer molded cheeks
Composite sheave

Specifications:

Rope size: (inch) 15/32" / (mm) 12
Length: (inch) 5 45/64" / (mm) 145
Width: (inch) 2 21/64" / (mm) 59
Thickness: (inch) 1 11/16" / (mm) 43
Working Load: (lb) 1580 / (kg) 720
Breaking Load: (lb) 2860 / (kg) 1300
Weight: (lb) 0.56 / (g) 254

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
