Name: Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32" [1225W]
Brand: Wichard Marine
SKU: 1225W-WIC
Price: 71.04 USD
Availability: OutOfStock

Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32" [1225W]

$71.04

$71.04 $0.00

Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32" [1225W]

$71.04

$71.04 $0.00

Shipping calculated at checkout.

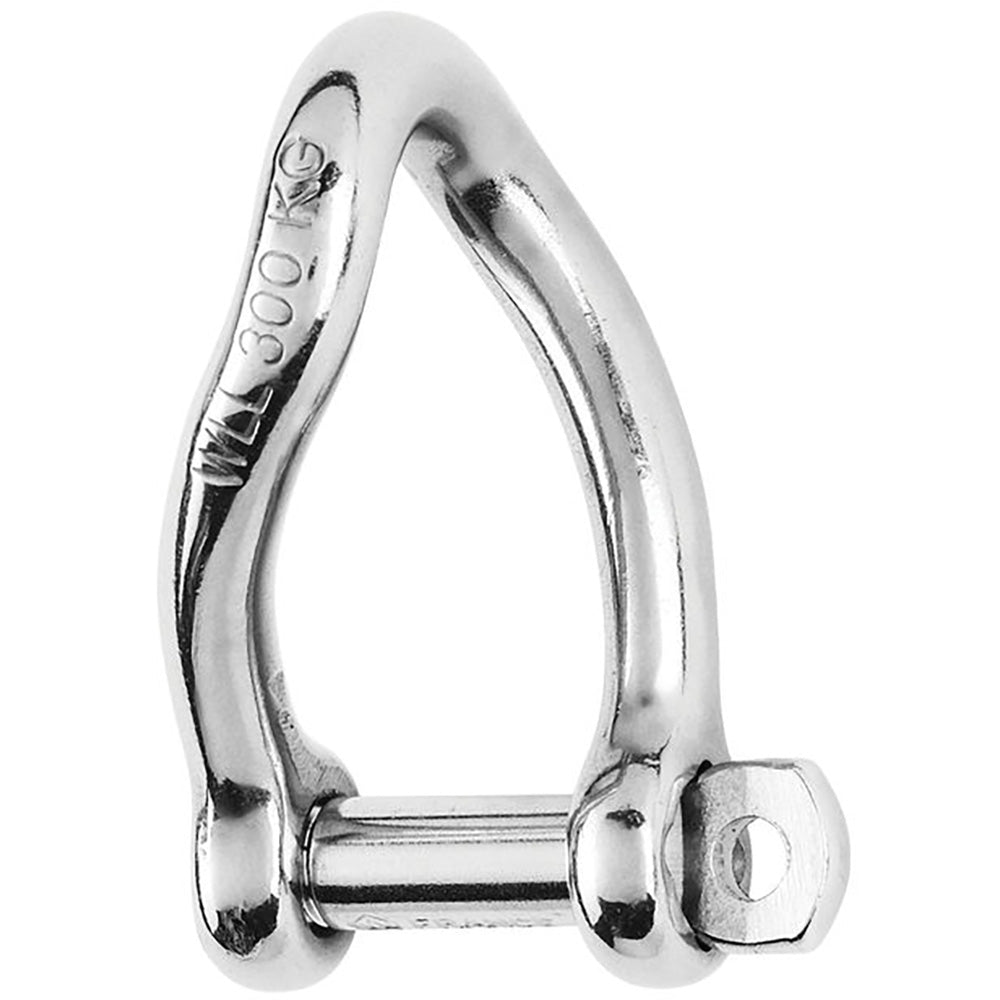

Self-Locking Twisted Shackle - Diameter 10mm - 13/32"

Features:

Self-locking twisted shackle forged in grade 316L stainless steel
The pin is locked into one of the indentations
No risks of loosening due to vibrations
Outstanding working and breaking loads

Applications:

Perfect for applications where a 90° angle twist setup is required
Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

Materials: 316 stainless steel grade
Working load: (lb) 3170 / (kg) 1440
Breaking load: (lb) 9920 / (kg) 4500
Weight: (lb) 0.28 / (g) 127

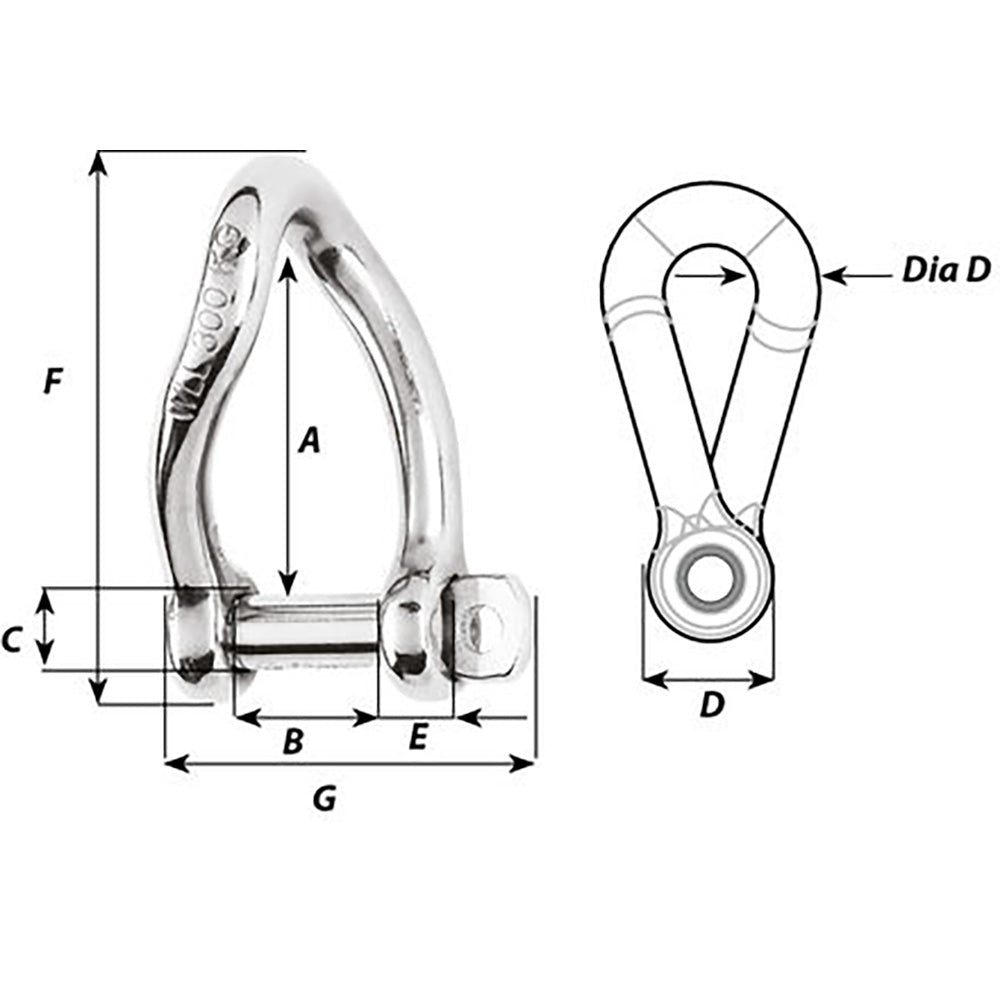

Dimensions:

A: (inch) 1 31/32" / (mm) 50
B: (inch) 25/32" / (mm) 20
C: (inch) 25/64" / (mm) 10
D: (inch) 3/4" / (mm) 19
D diameter: (inch) 25/64" / (mm) 10
E: (inch) 23/64" / (mm) 9
F: (inch) 2 29/32" / (mm) 74

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
