Name: Wichard Round Pad Eye - 57mm Diameter (2-1/4") - Fixed [6635W]
Brand: Wichard Marine
SKU: 6635W-WIC
Price: 79.25 USD
Availability: OutOfStock

Wichard Round Pad Eye - 57mm Diameter (2-1/4") - Fixed [6635W]

$79.25

$79.25 $0.00

Wichard Round Pad Eye - 57mm Diameter (2-1/4") - Fixed [6635W]

$79.25

$79.25 $0.00

Shipping calculated at checkout.

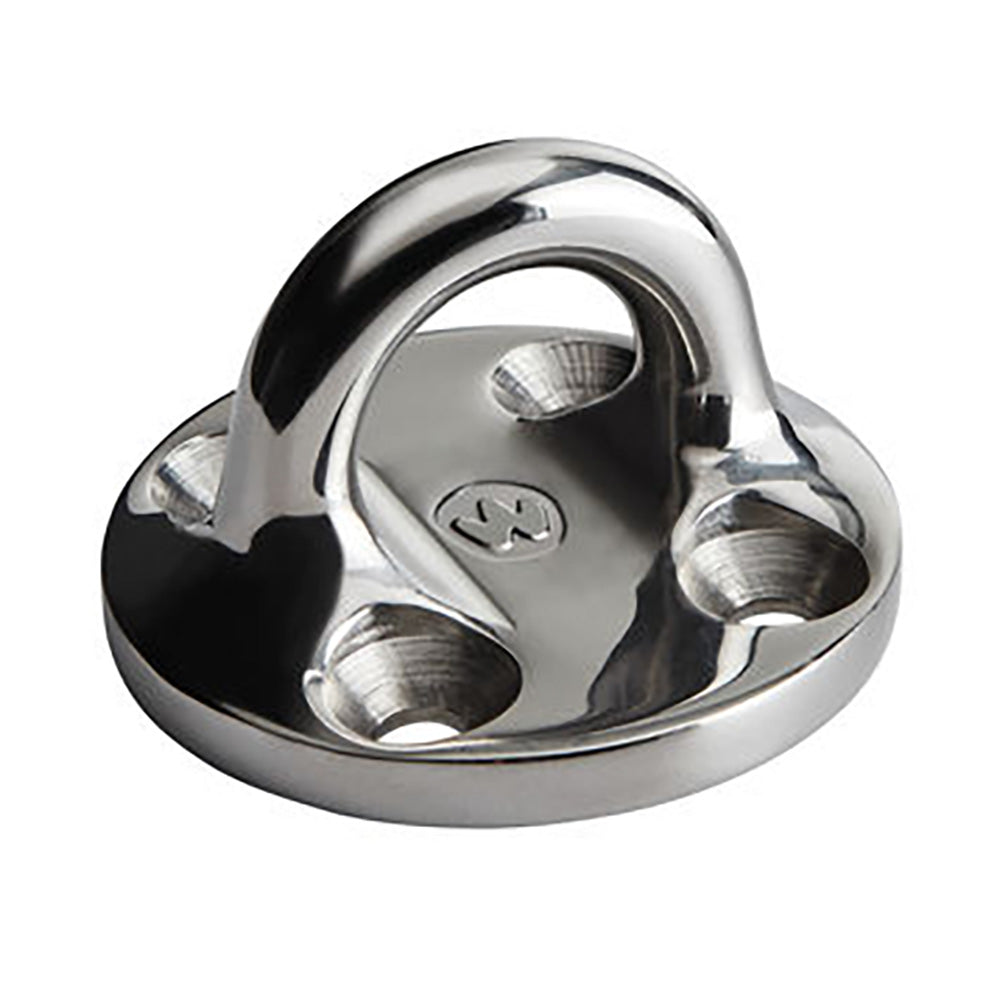

Round Pad Eye - 57mm Diameter (2-1/4") - Fixed

This fixed rounded pad-eye completes the range of fixed pad eyes and thus it can suit any user scenario. For example, it can be used for reefing blocks and fastening points on bowsprits and blocks. Made from duplex stainless steel, it offers excellent mechanical strength for its corrosion resistance. For M6 screws.

Applications:

Reefing blocks
Fastening points on the bowsprit
Blocks fastening

Specifications:

Materials: Duplex stainless steel grade
Weight: (lb) 0.331 / (g) 150
W.L 1 (90 degrees): (lb) 5070.6 / (kg) 2300
W.L 2 (45 degrees): (lb) 4519.4 / kg 2050
W.L 3 (0 degrees): (lb) 4299 / kg 1950
B.L 1 (90 degrees): (lb) 10031 / kg 4550
B.L 2 (45 degrees): (lb) 9038.9 / kg 4100
B.L 3 (0 degrees): (lb) 8598 / kg 3900

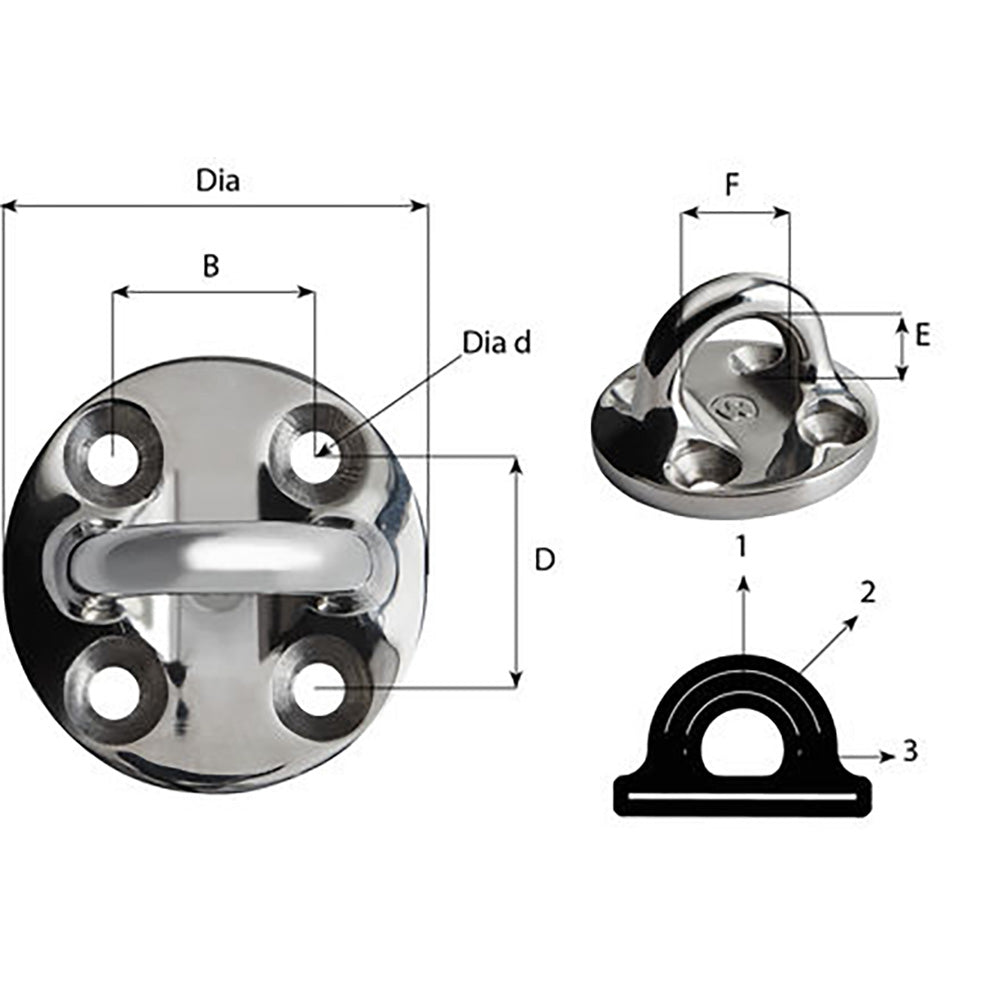

Dimensions:

A: (inch) 2 1/4" / (mm) 57
B: (inch) 1 1/16" / (mm) 27
D: (inch) 1 3/16" / (mm) 30
E: (inch) 3/4" / (mm) 19
F: (inch) 55/64" / (mm) 22

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide (pdf)
