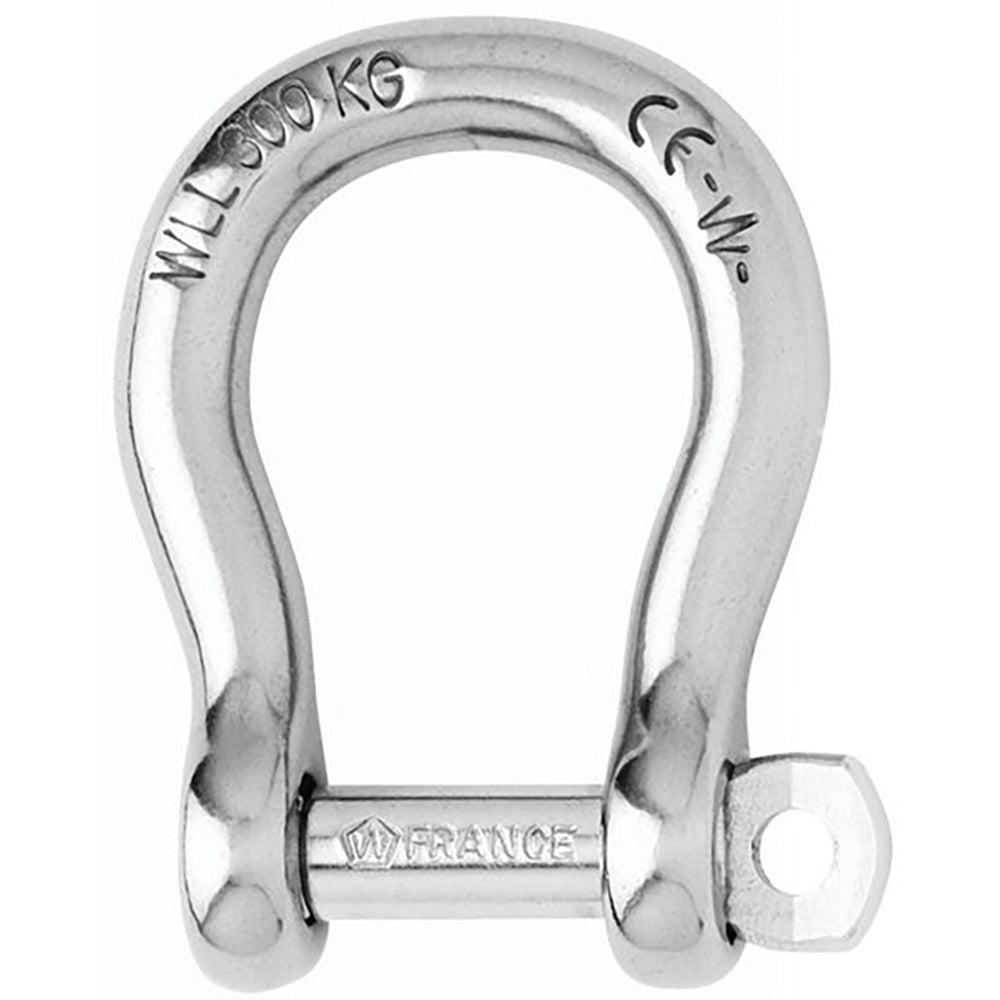

Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"

Features:

Bow shackle forged in grade 316L stainless steel
The pin is locked into one of the indentations
No risks of loosening due to vibrations
Outstanding working and breaking loads
WLL: only for industrial applications (lifting i.e…)
CE marking
Part # 01247 is not self-locking

Applications:

To be used when ample room is required
Possibility to attach several lines or cables

Specifications:

Materials: 316 stainless steel grade
Working load: (lb) 7050 / (kg) 3200
WLL: (lb) 4400 / (kg) 2000
Breaking load: (lb) 22040 / (kg) 10000
Weight: (lb) 1.19 / (g) 540

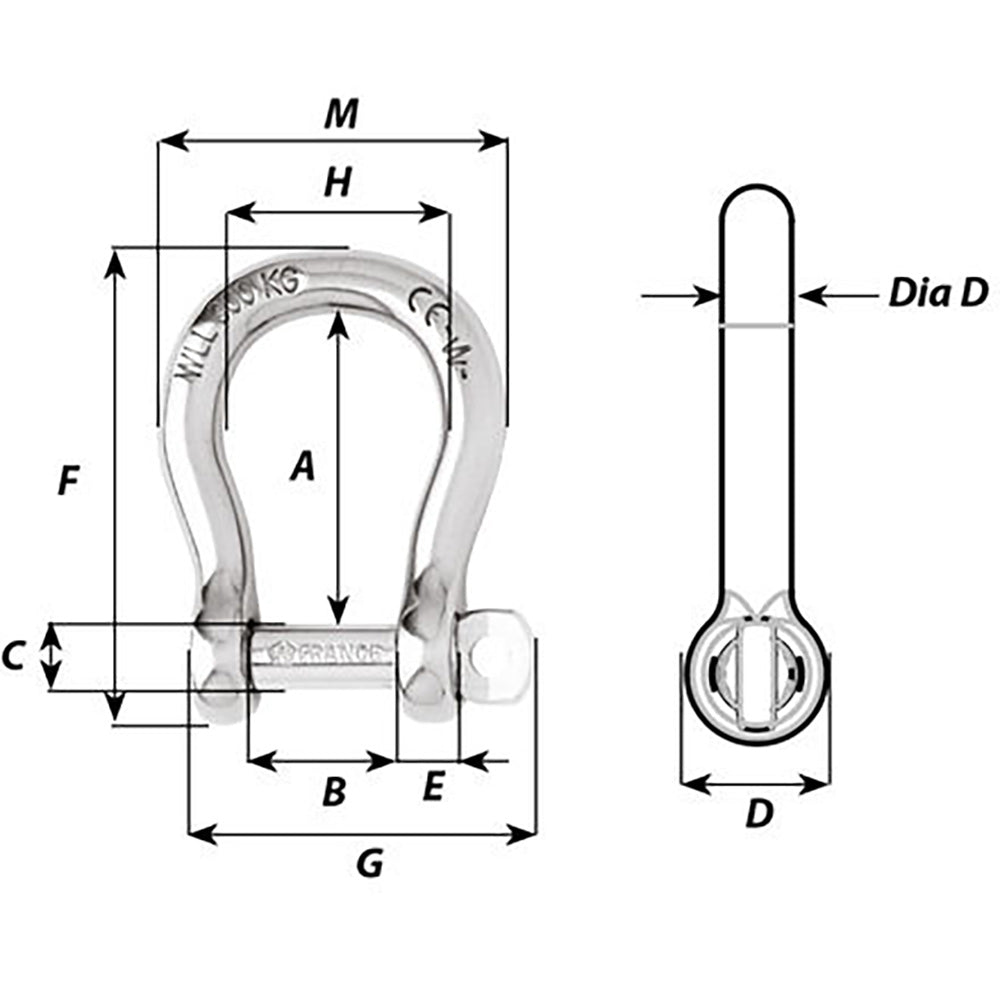

Dimensions:

A: (inch) 2 3/4" / (mm) 70
B: (inch) 1 17/64" / (mm) 32
C: (inch) 35/64" / (mm) 14
D: (inch) 1 17/64" / (mm) 14
D diameter: (inch) 5/8" / (mm) 16
E: (inch) 19/32" / (mm) 15
M: (inch) 3 11/32" / (mm) 85

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5

*Sold as an Individual
