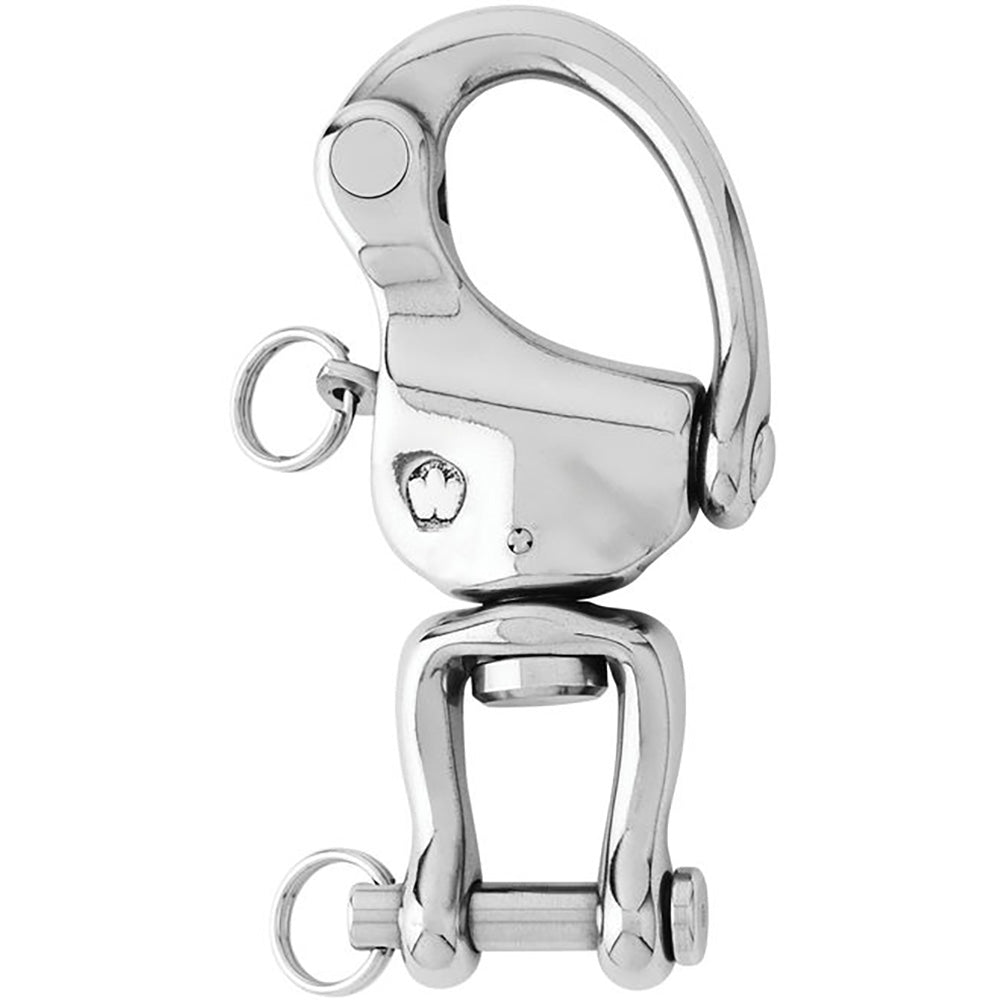

Wichard HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32" [2478W]

HR Snap Shackle With Clevis Pin Swivel - 120mm Length - 4-23/32"

Features:

• HR Forged snap shackle (Grade 17.4 PH stainless steel) with clevis pin swivel
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads
• Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

• Snap shackle applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 5290 / (kg) 2400
• Breaking load: (lb) 15430 / (kg) 7000
• Weight: (lb) 0.919 / (g) 417

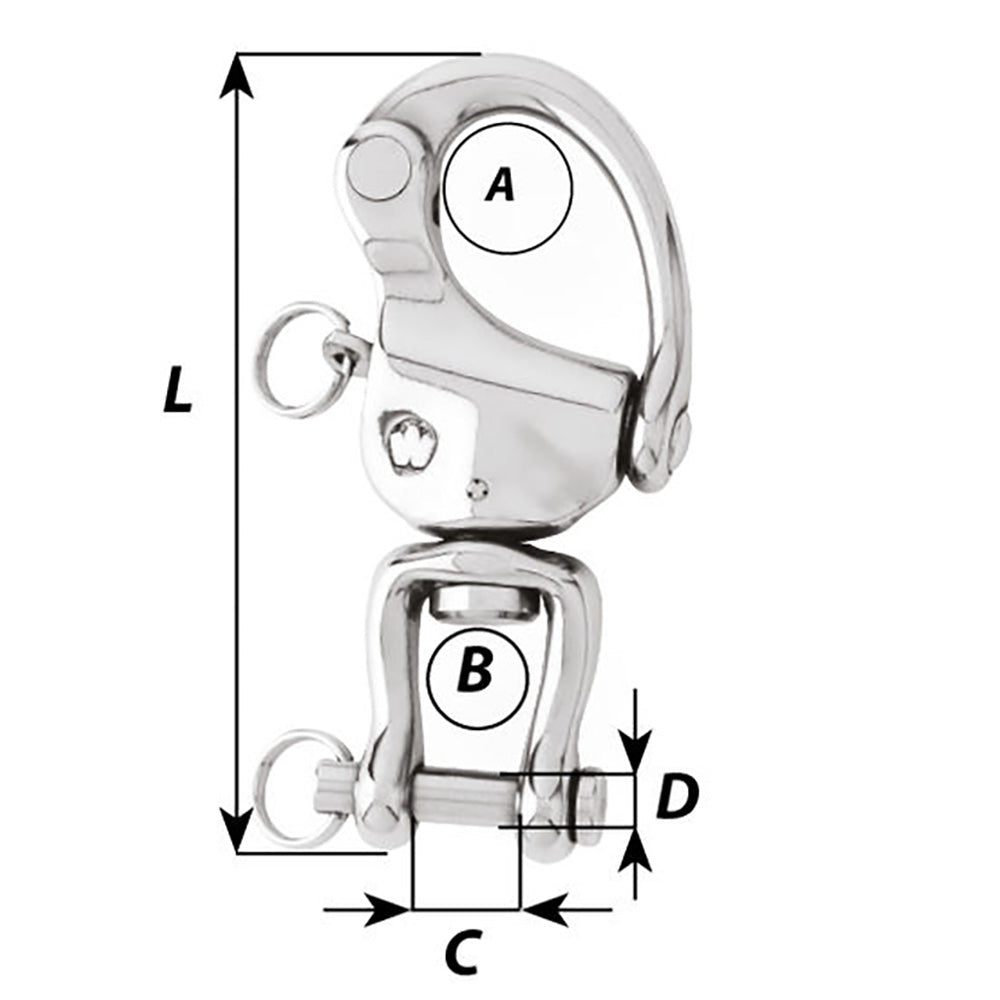

Dimensions:

• A: (inch) 1 1/32" / (mm) 26
• B: (inch) 1 1/16" / (mm) 27
• C: (inch) 45/64" / (mm) 18
• D diameter: (inch) 7/16" / (mm) 11
• Length: (inch) 4 23/32" / (mm) 120

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual
