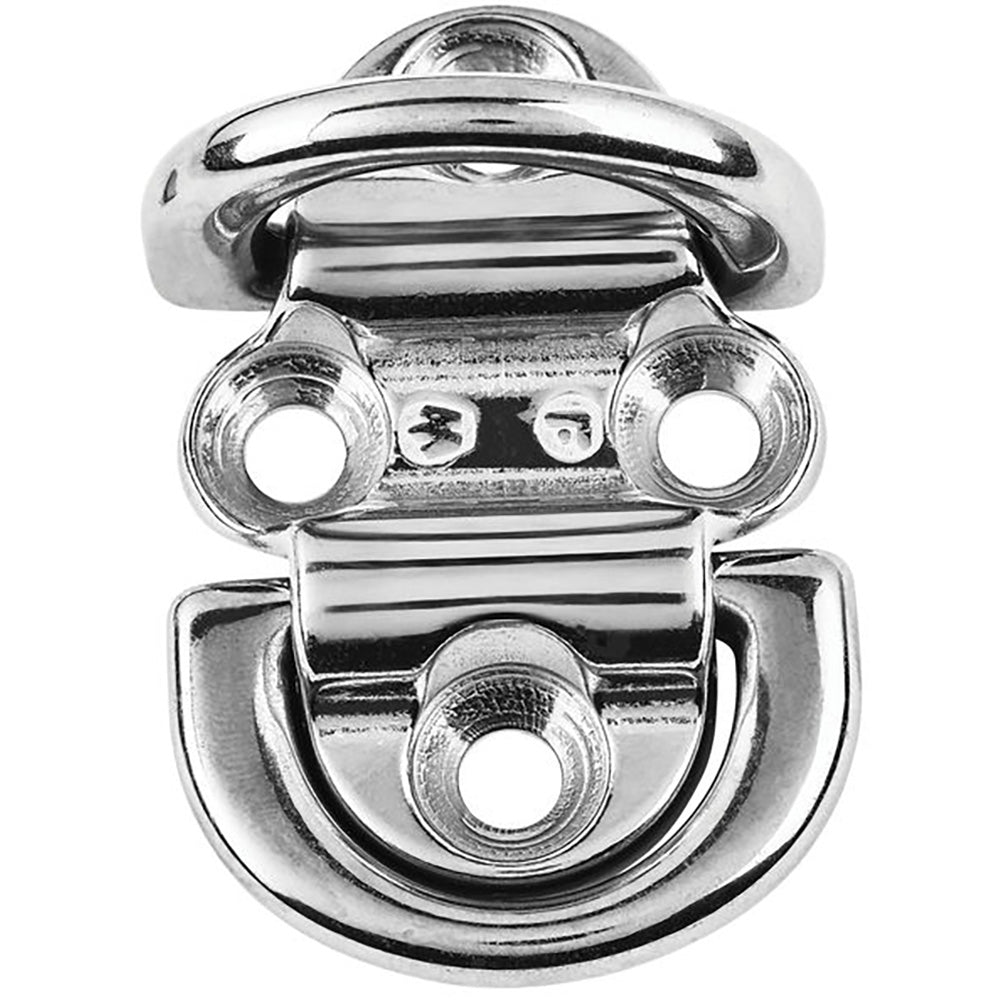

Name: Wichard Double Folding Pad Eye - 8mm Diameter - 5/16" [6565W]
Brand: Wichard Marine
SKU: 6565W-WIC
Price: 194.73 USD
Availability: OutOfStock

Wichard Double Folding Pad Eye - 8mm Diameter - 5/16" [6565W]

$194.73

$194.73 $0.00

Wichard Double Folding Pad Eye - 8mm Diameter - 5/16" [6565W]

$194.73

$194.73 $0.00

Shipping calculated at checkout.

Double Folding Pad Eye - 8mm Diameter - 5/16"

Features:

Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
Perfect solution attachment (stay, blocks, jib tack point)
Possibility to attach several stays
Modern and optimized design to suit the aesthetics of modern boats
They can be folded down to minimize the risk of injuries
The silicon pad eliminates noise and unpleasant vibrations

Applications:

For any fastening/attachment application
Allows to attach several shrouds

Specifications:

Materials: 316L stainless steel grade
Working load: (lb) 5290 / (kg) 2400
Breaking load: (lb) 9470 / (kg) 4300
Weight: (lb) 0.556 / (g) 252

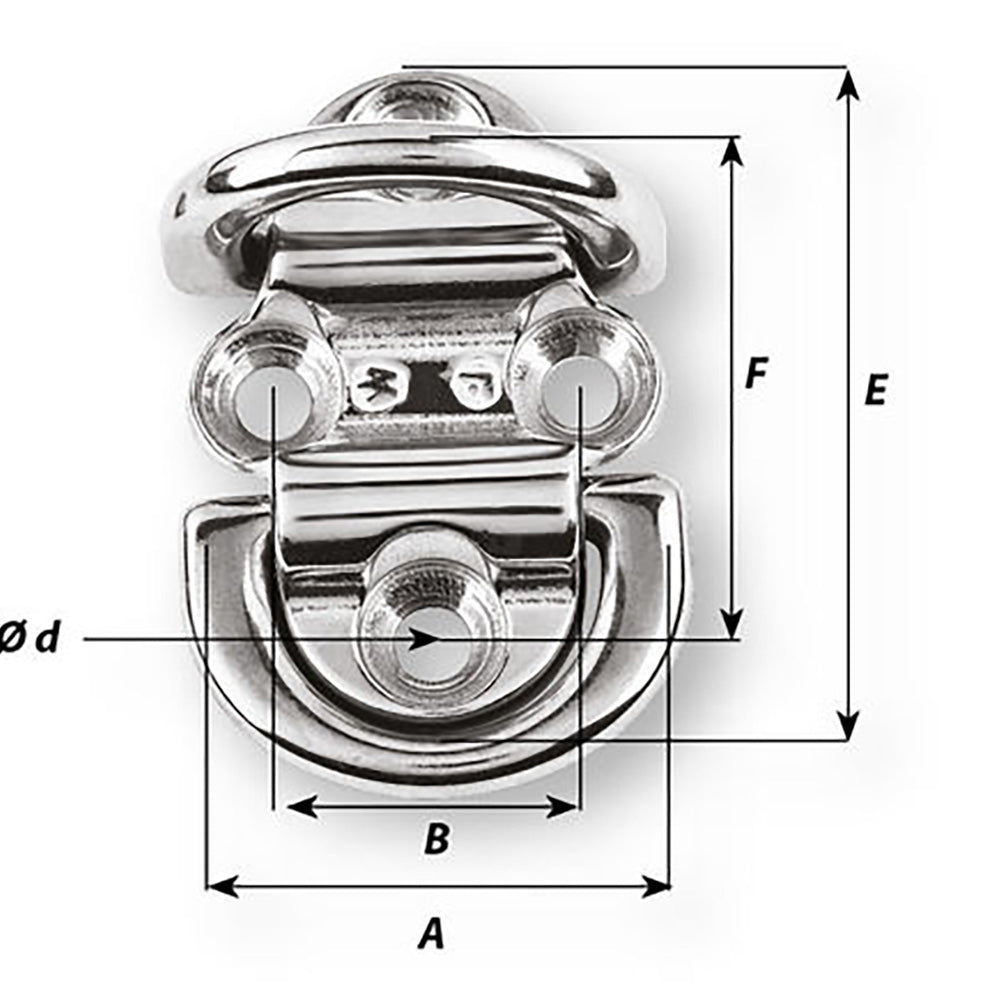

Dimensions:

A: (inch) 2 21/64" / (mm) 59
B: (inch) 1 3/8" / (mm) 35
C: (inch) 43/64" / (mm) 17
d diameter: (inch) 21/64" / (mm) 8.5
D diameter: (inch) 5/16" / (mm) 8
E: (inch) 3 3/16" / (mm) 81
F: (inch) 2 21/64" / (mm) 59

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
