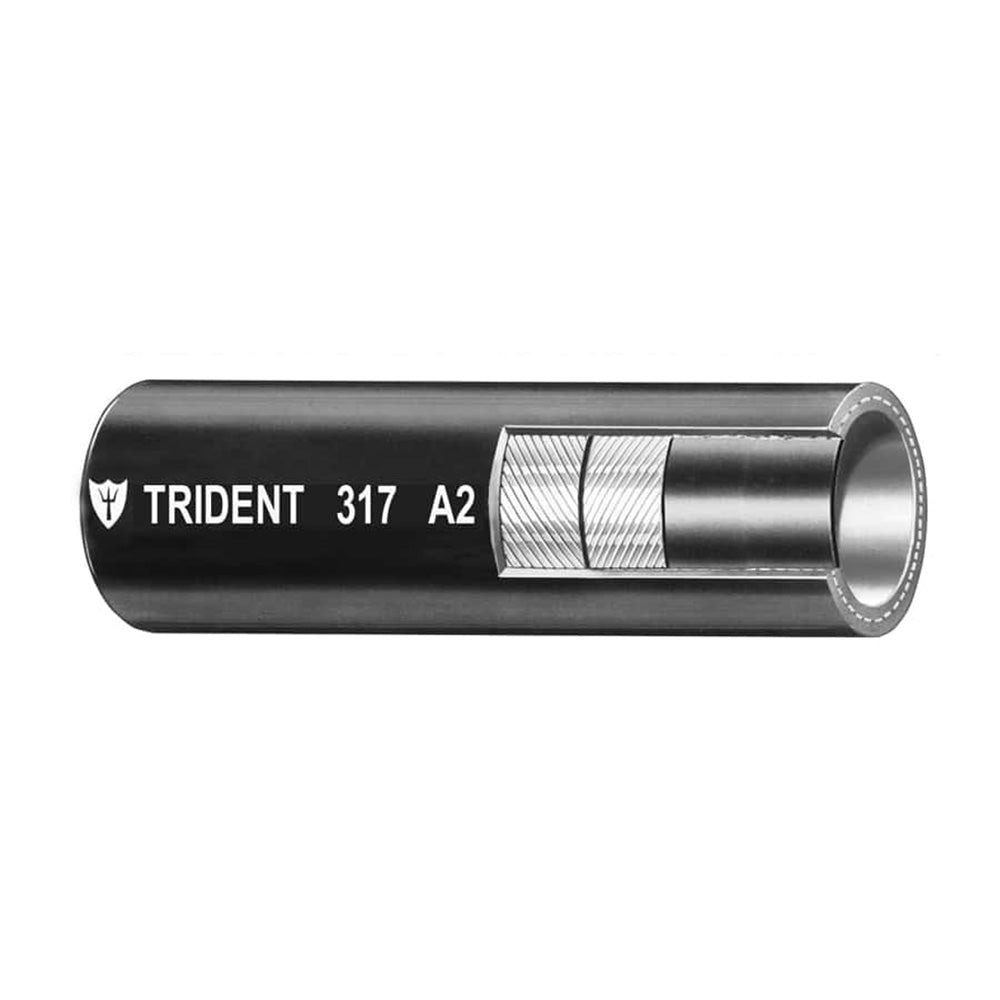

Name: Trident Marine 5/8" Type A2 Fuel Vent Line Hose - Black - Sold by the Foot [317-0586-FT]
Brand: Trident Marine
SKU: 317-0586-FT-TRI
Price: 6.09 USD
Availability: InStock

Trident Marine 5/8" Type A2 Fuel Vent Line Hose - Black - Sold by the Foot [317-0586-FT]

$6.09

Trident Marine 5/8" Type A2 Fuel Vent Line Hose - Black - Sold by the Foot [317-0586-FT]

$6.09

Shipping calculated at checkout.

5/8" Type A2 Fuel & Vent Line Hose - Black - Sold by the Foot

Trident 5/8” A2 Fuel Hose for gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends). This hose is built with the best fuel, fire and age resistant formulation.

Features:

Sold by the foot
Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
Also provides excellent bend-ability
NMMA Type Accepted & CE certified

Applications:

Fuel Hose for vent and diesel distribution
For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

Tube: Nylon Internal Barrier, NBR
Cover: NBR/PVC Blend
Reinforcement: Polyester 2 spiral
Temperature Range: -20°F to 212°F (-28ºC to 100ºC)

Specifications:

Inner Diameter: (inch) 5/8" / (mm) 15.9
Outer Diameter: (inch) 0.960 / (mm) 24.4
Burst Pressure: (psi) 200 / (mpa) 1.38
Working Pressure: (psi) 50 / (mpa) 0.34
Bend Radius: (inch) 3" / (mm) 76.2
Weight: (lb/100 ft.) 25.84 / (kg/m) 11.72

*The #317 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

ID Diameter (inches): 5/8"
Length (Feet): Sold By The Foot
Box Dimensions: 1"H x 1"W x 1"L WT: 0.27 lbs
