Name: Schaefer Spring Loaded/Lined Slide/Aluminum f/1" T-Track [504-82]
Brand: Schaefer Marine
SKU: 504-82-SCH
Price: 271.45 USD
Availability: InStock

Schaefer Spring Loaded/Lined Slide/Aluminum f/1" T-Track [504-82]

$271.45

Schaefer Spring Loaded/Lined Slide/Aluminum f/1" T-Track [504-82]

$271.45

Shipping calculated at checkout.

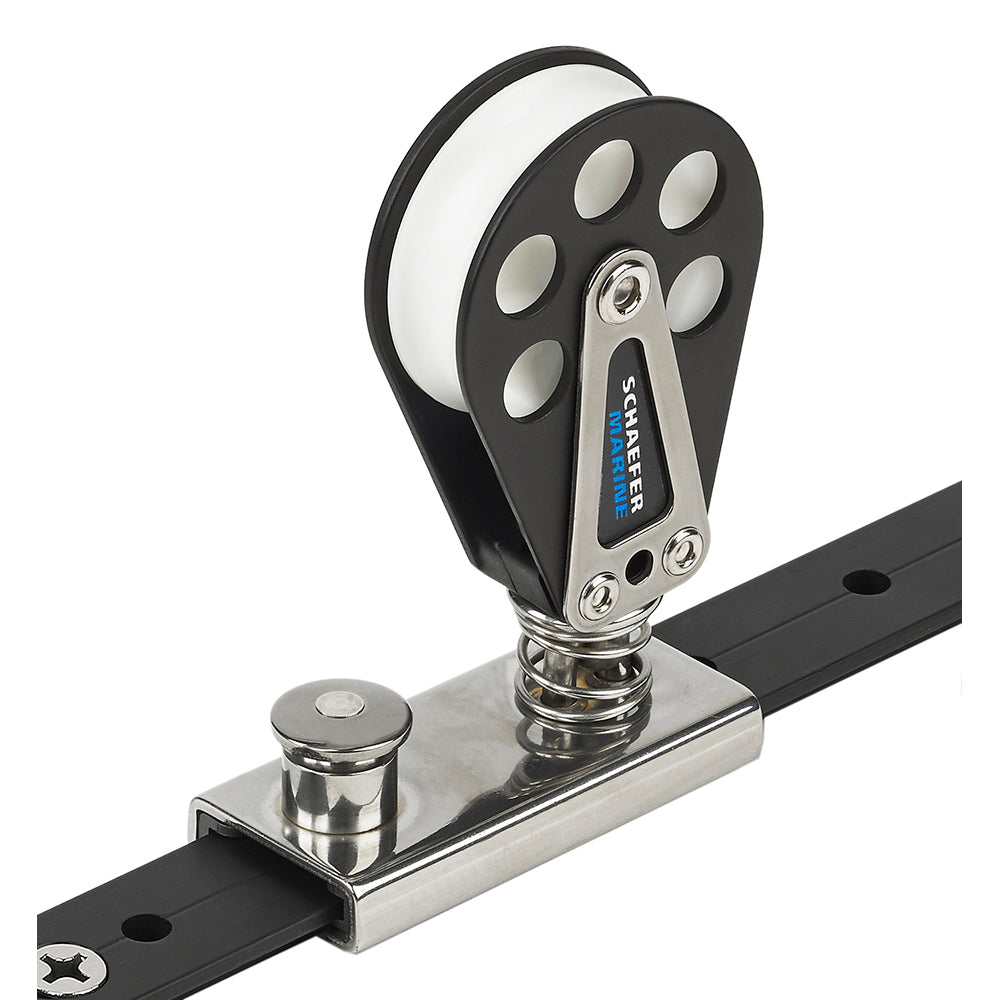

Spring Loaded/Lined Slide/Aluminum for 1" T-Track

Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

Track Size 1" x 1/8" (25 mm x 3 mm)
Max. Boat Length- 27' (8m)
Max. Boat Weight- 5000 lbs. (2270 kgs)
Sail Area- 315 sq. ft (29 m2)
Sheave Diameter 2" (51 mm)
Max Line 7/16" (11 mm)
Length 3" (76 mm)
Width 1-1/4" (31 mm)
Height 4-5/32" (105 mm)
Bearing Height 2-7/32" (56 mm)
SWL 1750 lbs. (795 kg)
Weight 7.0 oz. (198 g)
