Name: Newmar PX-2 Junction Box Waterproof
Brand: Newmar
SKU: NEWPX2
Price: 61.76 USD
Availability: InStock

Newmar PX-2 Junction Box Waterproof

$61.76

$61.76 $67.00

Newmar PX-2 Junction Box Waterproof

$61.76

$61.76 $67.00

Shipping calculated at checkout.

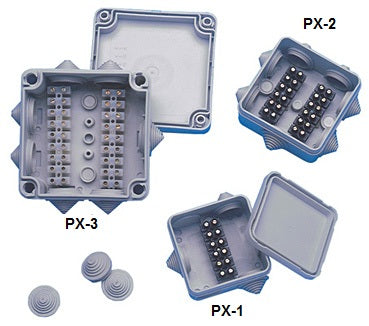

Waterproof Junction Boxes

Ideal for making wiring connections above or below decks, even in areas subject to occasional spray
Similar to BX Series junction boxes, but made from rugged, non-corrosive, high impact polypropylene
Snap-on cover provides watertight seal
"Universal" cut-to-fit (see diagram) graduated diameter cable entries accommodate wide cable range
Multiple position connector strips with "captive" screw compression wire terminals installed - meets ABYC standards
Multiple knockouts provided for conduit access (in addition to cable entries)
IEC Waterproof Rating: IP54 - "Water projected in jets against the enclosure from any direction shall have no harmful effects."

Specifications

Model	PX-1	PX-2	PX-3
Number of Connector Strips	1	2	2
Positions per Strip	6	6	9
Max Wire Gauge	16	16	16
Number of Cable Entry Ports	5	7	7
Number of Cable Entries Installed	3	7	7
Spare Cable Entries Provided	2	0	0
Cable Diameter Range (inches)	.14-.81	.14-.81	.14-1.0
Cable Diameter Range (mm)	3.5-20.5	3.5-20.5	3.5-25.5
Box Size Inches	2.95 x 2.95 x 1.66	3.35 in x 3.35 x 1.66	4.45 x 4.45 x 2.29
Box Size Centimeters	7.5 x 7.5 x 4.2	8.5 x 8.5 x 4.2	11.3 x 11.3 x 5.8
