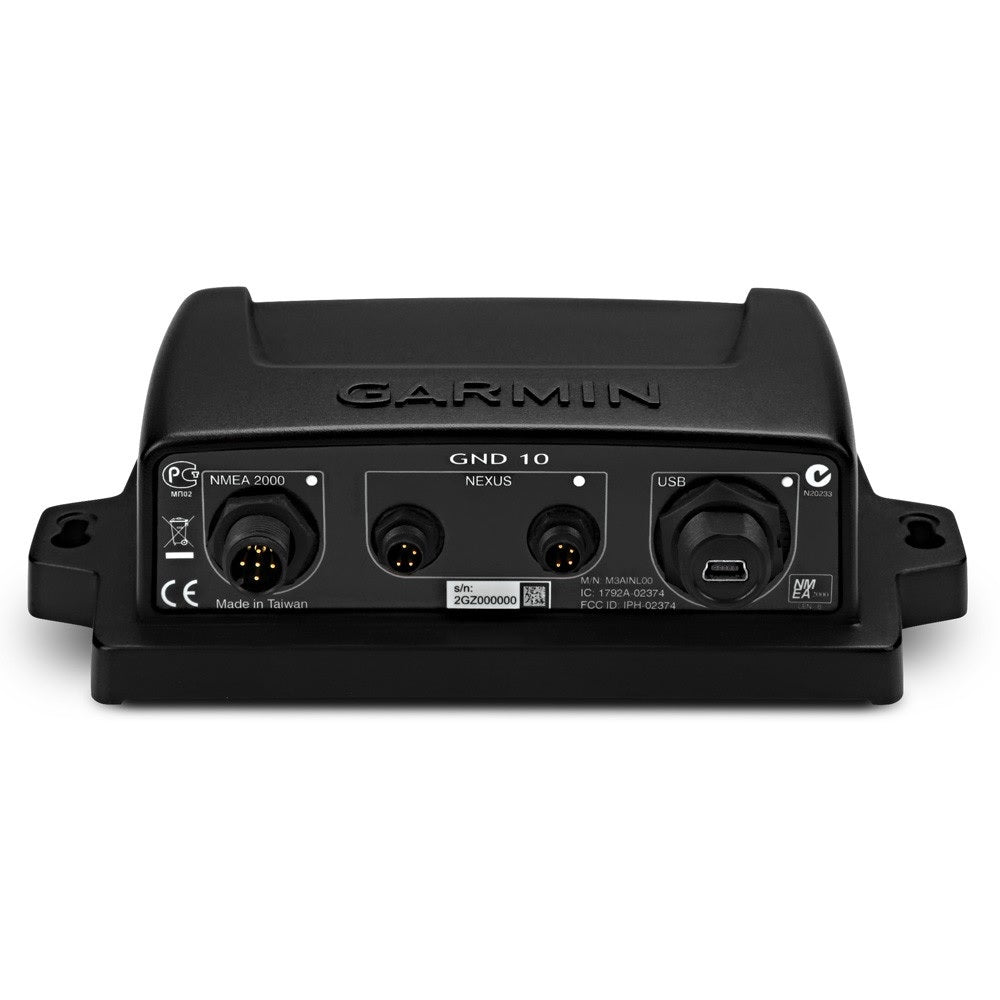

Garmin GND10 Black Box Bridge

• Converts data between the Nexus network and NMEA 2000(R)
• Provides compatibility between Nexus and Garmin products
• Simple plug-and-play installation between Nexus, NMEA 2000 and USB
• No user setup or system configuration required
• Allows PC applications, such as NexusRaceTM, Expedition, Adrena or SeaTrack, to communicate sailing-specific functions between Nexus and NMEA 2000 networks

The GND 10 black box bridge seamlessly integrates Nexus instruments and sensors with the Garmin family. It converts data between the Nexus Network and NMEA 2000 to provide compatibility between Nexus and Garmin products, including gWindTM, gWindTM Wireless and gWindTM Race transducers. Simple plug-and-play installation between Nexus and NMEA 2000, with USB connectivity, eliminates the need for user setup and system configuration.

GND 10 allows PC applications, such as NexusRace, Expedition, Adrena or SeaTrack, to communicate sailing-specific functions between Nexus and NMEA 2000 networks. It also enables GND 10 software updates over NMEA 2000. Existing NexusRace PC application can be used to update software, configure and calibrate Nexus devices over USB using the FDX protocol. You can even set lighting levels of Nexus Marine instruments from equipment connected to NMEA 2000.

Specifications

• Unit Dimension, WxHxD: 170 x 90 x 50 mm
• Weight: 196g
• Waterproof: Yes (IPX7)
• Temp Range: From 5 degF to 158 degF (-15 degC to 70 degC)
• Voltage Range: 9-16V
• Power Usage: 0.85W
• Compass Safe Distance: 0.1m
• Accuracy Angle: N/A
• Speed: N/A
• NMEA 2000(R) Load Equivalency Number (LEN): 4
• Wireless Connectivity: No

In The Box

• GND 10
• USB Mini-B cable
• NMEA 2000(R) drop cable (2 m)
• NMEA 2000 T-connector
• Nexus network cable (5 m; straight connector)
• Mounting hardware
• Documentation
