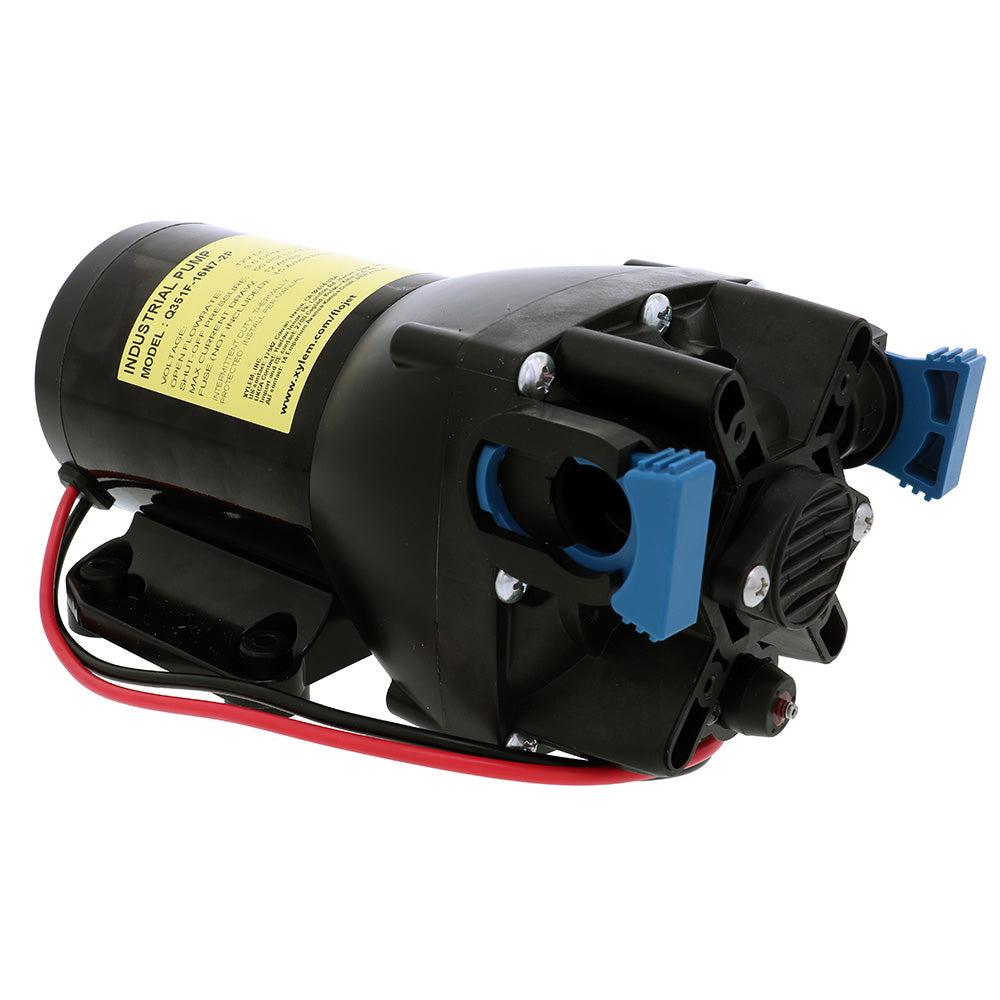

Name: Flojet VersiJet Diaphragm Pump - 3.5 GPM, 12V, 50 PSI [Q351F-16N7-2P]
Brand: Flojet
SKU: Q351F-16N7-2P-FLO
Price: 231.59 USD
Availability: OutOfStock

Flojet VersiJet Diaphragm Pump - 3.5 GPM, 12V, 50 PSI [Q351F-16N7-2P]

$231.59

$231.59 $0.00

Flojet VersiJet Diaphragm Pump - 3.5 GPM, 12V, 50 PSI [Q351F-16N7-2P]

$231.59

$231.59 $0.00

Shipping calculated at checkout.

VersiJet Diaphragm Pump - 3.5 GPM, 12V, 50 PSI

Flojet VersiJet Series industrial diaphragm pump. It is engineered for durability and longevity. This Flojet pump is perfect for applications such as liquid transfer, spraying, cooling, circulation, filtration, dispensing, and more! Glass-filled polypropylene hose is resistant to corrosion. Viton seals and a Santoprene diaphragm provide resistance to chemicals and corrosion. It has quick-connect ports and includes two 1/2" straight hose barbs.

Features:

Heavy-duty, coated motor
Long-life co-molded diaphragm
Efficient, quiet operation
Self-priming
Runs dry without damage
4-chamber diaphragm
Quick-connect ports
TENV permanent magnet motor
Noise-dampening baseplate
Thermal motor protection (TCO)

Applications:

Liquid Transfer
Spraying
Cooling
Circulation
Filtration
Dispensing

Specifications:

Product Number: Q351F-16N7-2P
Port Fittings: 2 x 1/2" (13mm) straight hose barb
Open Flow Rate: 3.5 GPM open flow (13.2 LPM)
Pressure Switch Cut-Off: No switch
Max Operating Pressure: 50 PSI (3.4 BAR)
Max Inlet Pressure: 30 PSI (2.2 BAR)
Internal Bypass: Yes
Fluid Temperature Range: 32° F - 140° F (0° C - 60° C)
Self-Priming Capability: Up to 8ft (2.4m) dry prime
Run-Dry Capable: Yes
Nominal Voltage: 12 VAC
Voltage Range: 9 V- 13.6 V
Max Current Draw: 9.5 Amps @ 50 PSI (3.4 BAR)
Fuse Size: 15 Amps (not included)
Duty Cycle: Intermittent
Leads: 12" (305mm), 14 AWG (2.5mm^2)
Wire Connection: Stripped wire
Weight (pump only): 5.1 lbs.

Materials:

Upper Housing: Glass-filled polypropylene
Lower Housing: Cast aluminum
Check Valve Retainer: Polypropylene
Diaphragm: Santoprene
Check Valves: Viton
Switch diaphragm: Viton
Bypass Diaphragm: Viton
PH Seals: Viton
PH Fasteners: Stainless steel
Baseplate: Nylon with Rubber Feet
Motor Casing: Cast aluminum; coated steel
