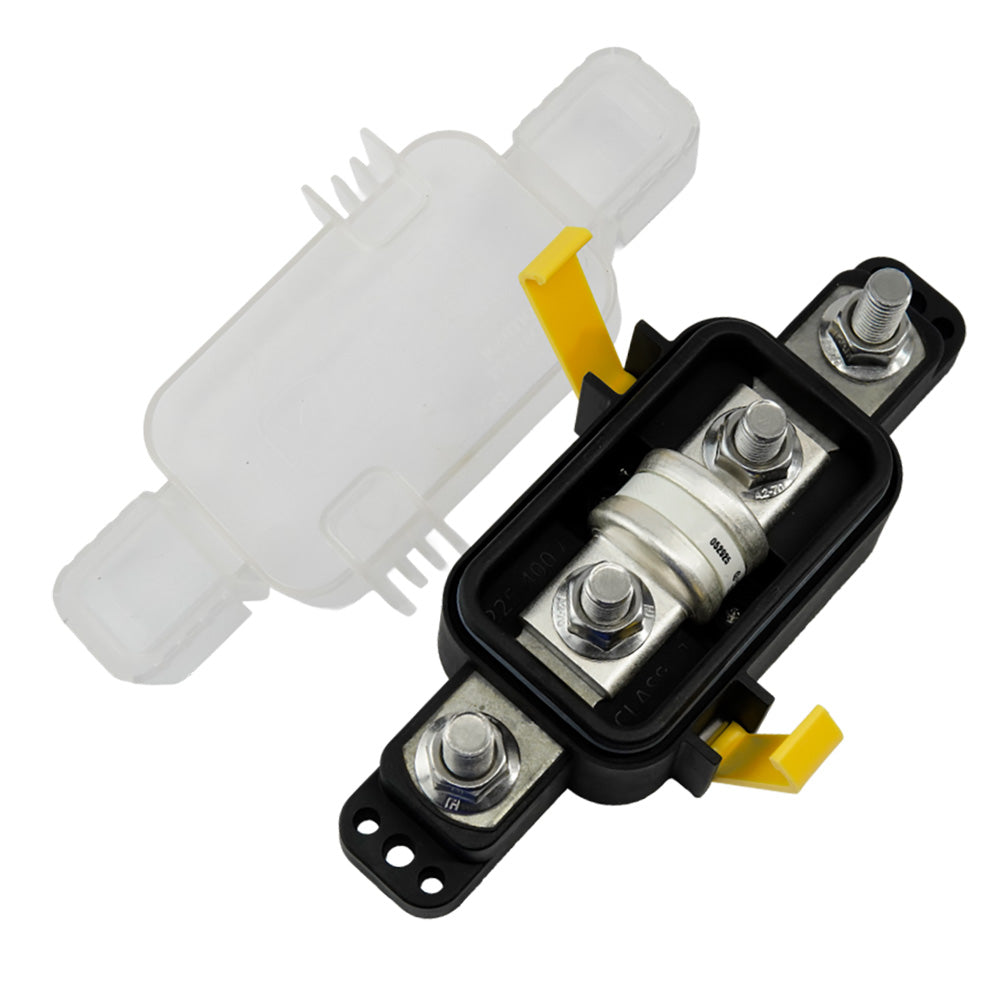

Class T Fuse Block 225-400 A - Sealed

Applications/Problems This Solves:

Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself.
Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.

Features:

Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop.
Stainless Steel Self-Locking Hardware ensures robust connections & long-term connection reliability.
Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.
4 Year Warranty

Specifications:

Maximum Amperage: 225-400A
Max Voltage: 80 VDC
Ingress Protection Ratings: IP66, IP67, IP6K9K
Mounting Holes: 4x #10 (M5) & 2x 1/4" (M6)
Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
Busbar Material: Tin-Plated Copper
