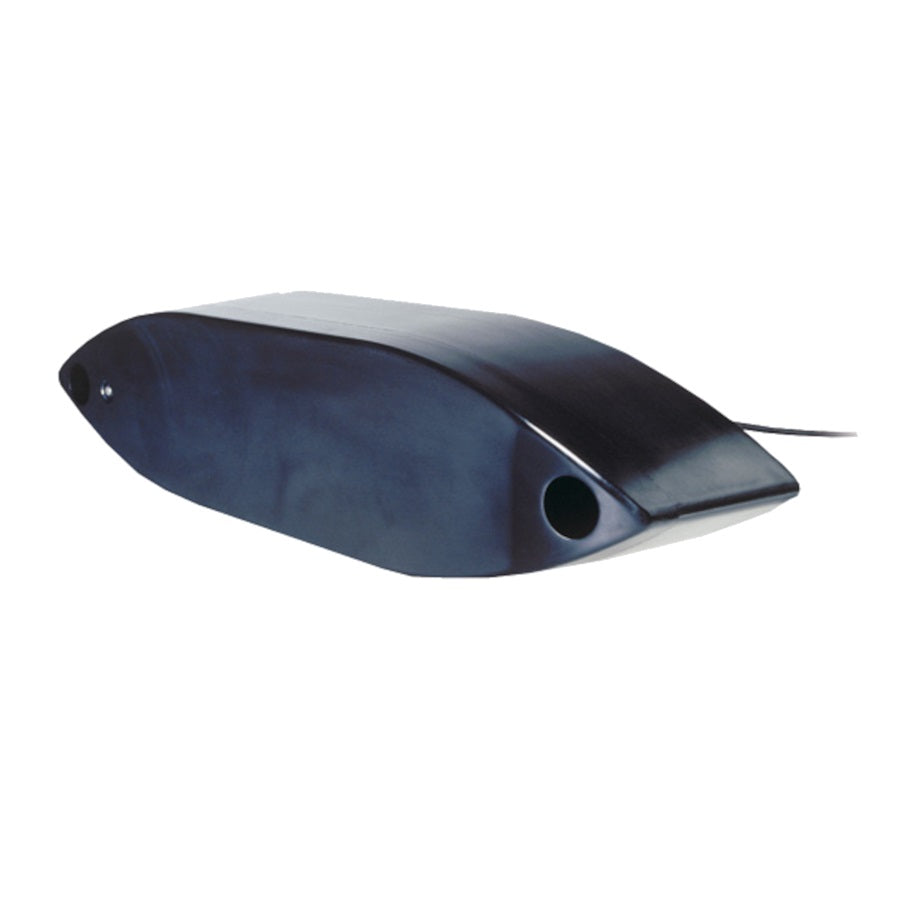

Airmar R509c-Lh Low/High Chirp 3KW Thru-Hull Mount Depth/Temp No

Airmar R509 Low-High Chirp, 3kW, w/FB, No Connector, DT

• Depth and fast-response water-temperature sensing
• 2 to 3 kW of power for exceptional deep-water performance
• Low frequency: 28 to 60 kHz, 23 deg to 9 deg port-starboard beamwidth, 11 deg to 5 deg fore-aft beamwidth, Maximum depth of 3048 m (10000 feet)
• High frequency: 130 to 210 kHz, 8 deg to 4 deg beamwidth, Maximum depth of 457 m (1500 feet)
• 112 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• Urethane housing with fairing for optimal performance
• Patented Xducer ID(R) technology

The R509LH is the go-to transducer for today's top captains who want maximum depth capability combined with the excellent target resolution of the high-frequency band. This powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game-fish separation at all depths. The R509LH is packed with a twenty-four element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8 deg to 4 deg, beam, delivering amazing target resolution and bottom detail.
