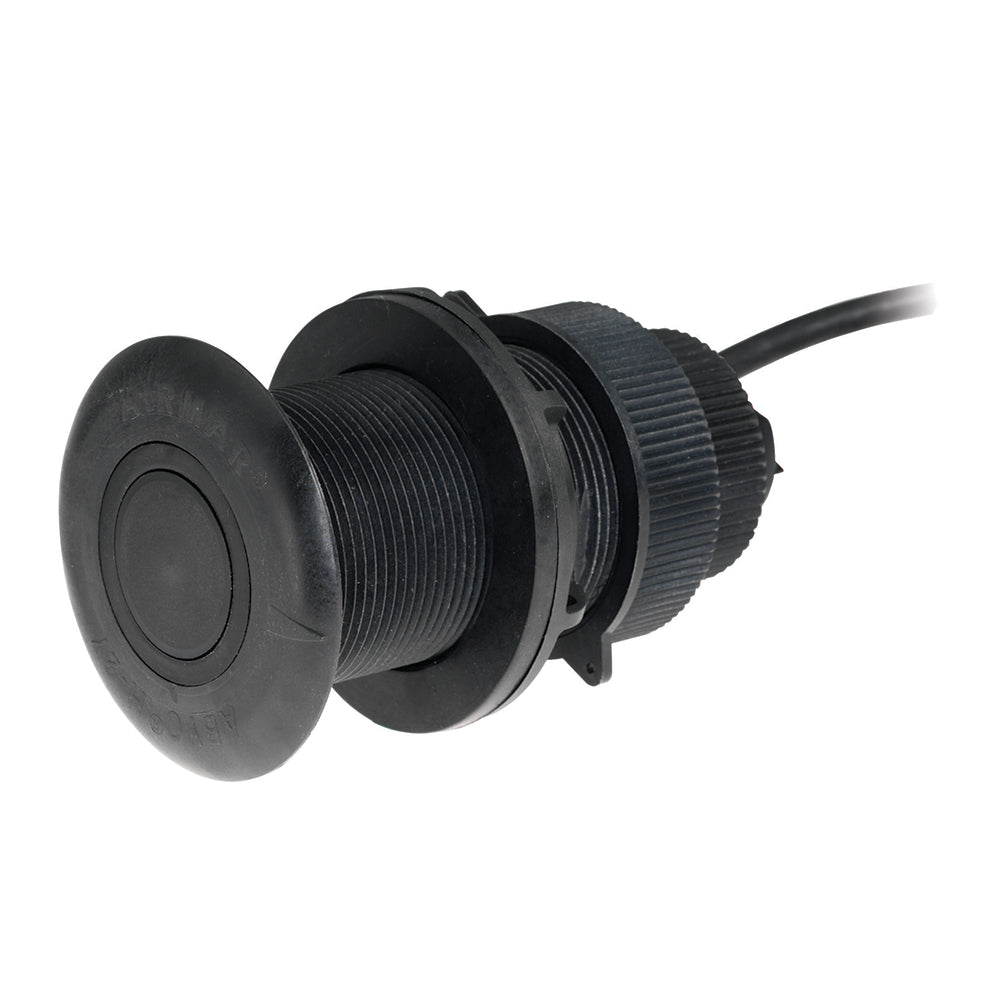

Name: Airmar DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20 [DT820PV-235-N2]
Brand: Airmar
SKU: DT820PV-235-N2-AIR
Price: 434.91 USD
Availability: OutOfStock

Airmar DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20 [DT820PV-235-N2]

$434.91

$434.91 $0.00

Airmar DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20 [DT820PV-235-N2]

$434.91

$434.91 $0.00

Shipping calculated at checkout.

DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20°

Function: Depth / Temperature, Material: Plastic, Fixed Tilt Angle: 20°
Frequency: 235 kHz, Cone: 12°, Power: 100 Watts RMS
Connector: 5-Pin NMEA 2000

Features:

Low-profile, retractable, thru-hull transducer offers depth and temperature functions in a single, compact housing
Tilted Element Transducer – unique design tilts ceramic element inside transducer housing, giving all the advantages of a fairing block without a hull protrusion
Available in fixed 0°, 12° or 20° tilt – perfect for power and sail boat applications
Low-profile housing compensates for hull deadrise, does not affect hull performance and provides accurate readings at high speeds
Designed with Airmar's exclusive Broadband Ceramic Technology, 235 kHz element improves resolution without sacrificing sensitivity
Smart™ Sensor with embedded microelectronics – transducer element and signal processor are only millimeters apart
235 kHz frequency prevents mutual interference with other echo sounders on vessel
Retractable housing with self-closing valve minimizes water flow into the vessel when transducer is removed for servicing

Specifications:

Mount: Thru-hull
Fixed Element Tilt Angle: 20° (for 16° - 24° hull deadrise)
Housing Material: Plastic
Connector: 5-pin NMEA 2000®
Cable Length: 20 ft.
Frequency: 235 kHz
Cone: 12°
Power: 100 Watts RMS
Depth Sensor Range: 1.6 - 594 ft.
Acoustic Window Material: Urethane
Compatible Hull Materials: Fiberglass or metal
Hole Diameter for Installation: 2"
Dimensions: 4.92" H x 2.94" OD
