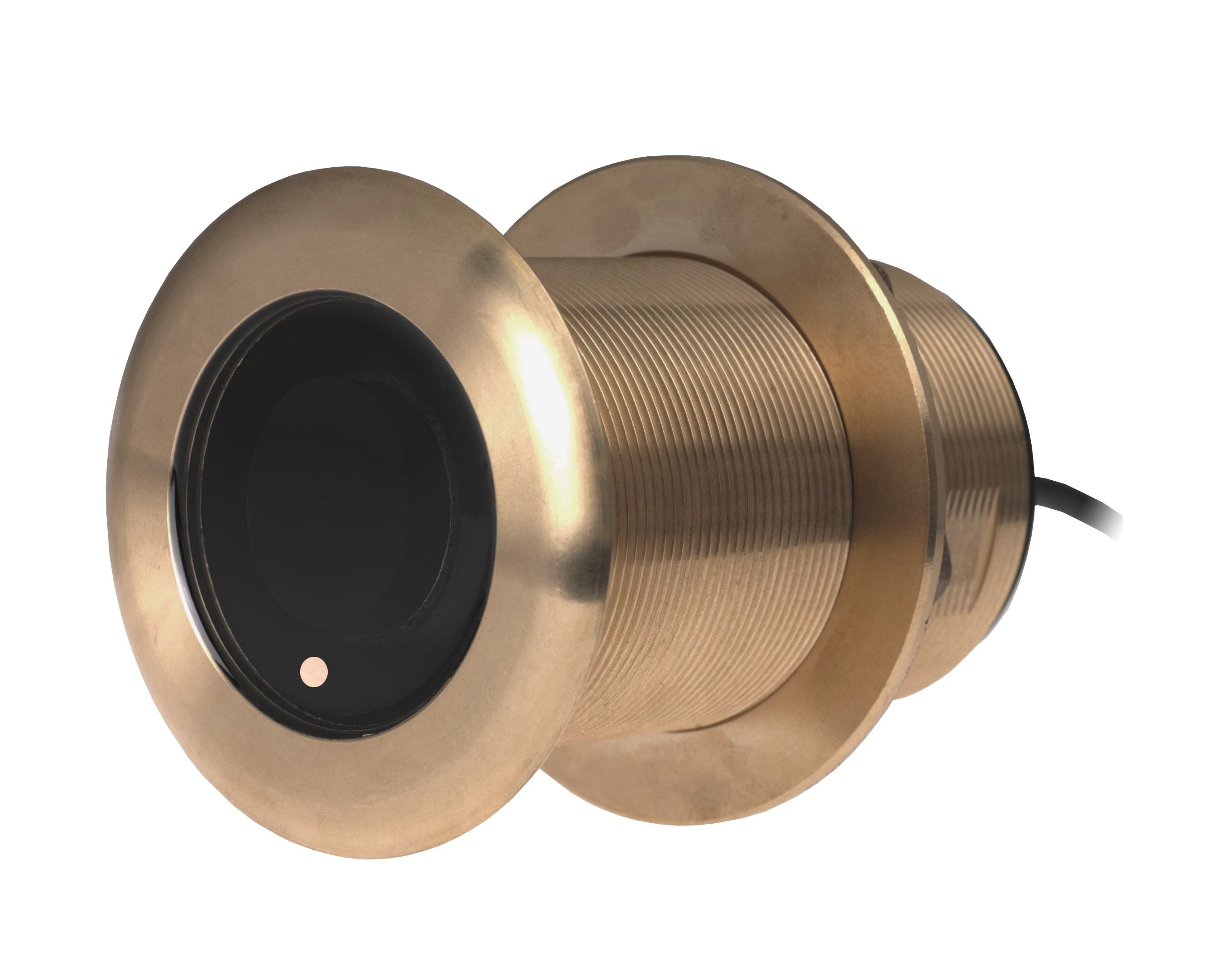

Airmar B75c-12-L 12d Tilt Low CHIRP Garmin 8-Pin Cable

Airmar B75C-12-L 12d Tilt Low CHIRP with Garmin 8-Pin Mix-N-Match Cable

• Depth & fast-response water-temperature sensor
• Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth
• 300 W of power with a maximum depth of 353 m (1200 feet)
• Great deep-water performance
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull

Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

Provides greater depth range, wider beamwidth, and ultimately more coverage under the boat

Chirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noise

Great for operating at high boat speeds

• B75C-12-L-MM
• MMC-8G Cable
