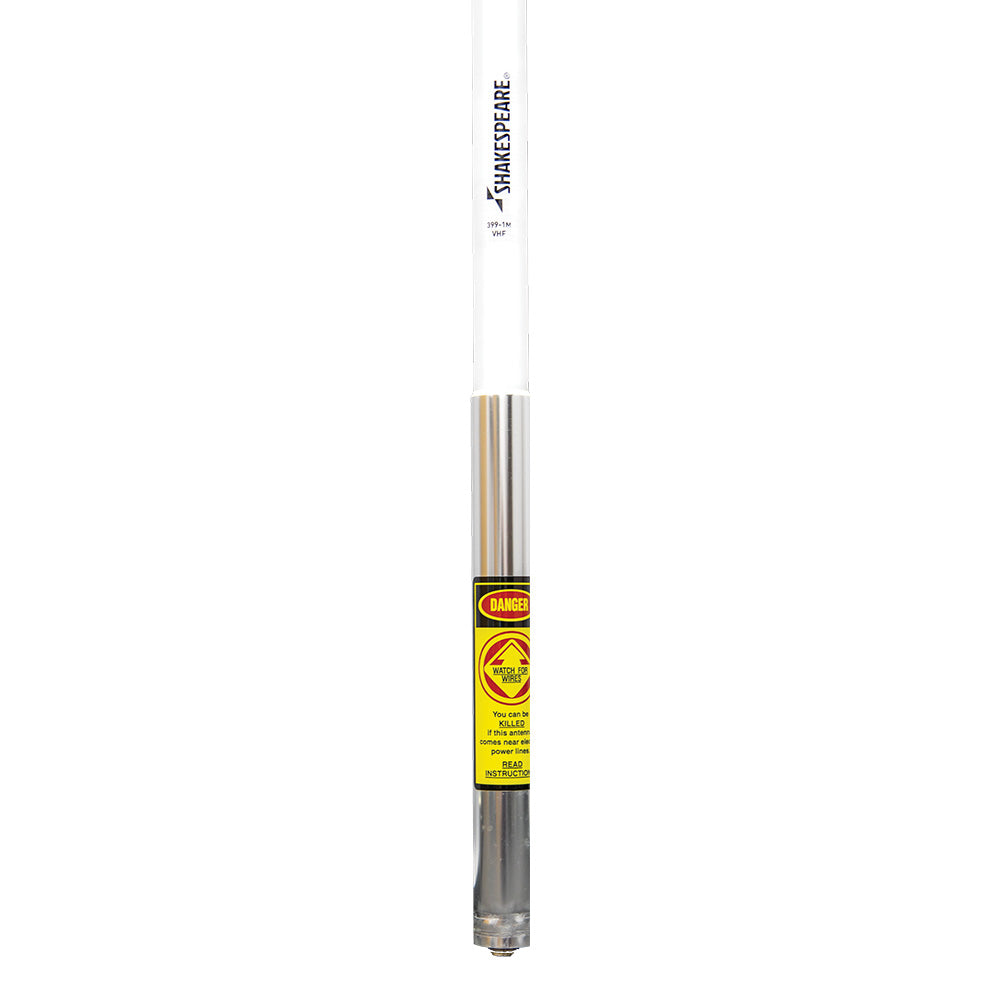

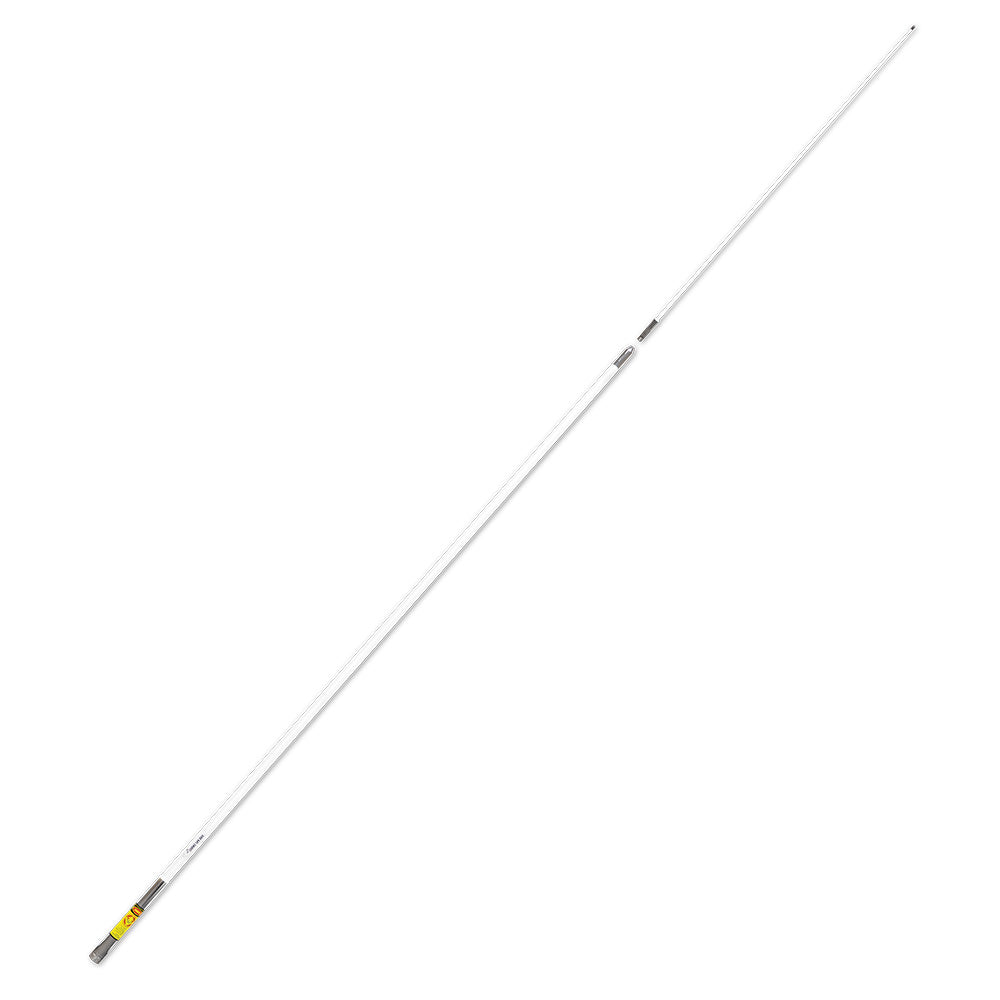

Name: Shakespeare 399-1M 9'6" VHF Antenna [399-1M]
Brand: Shakespeare
SKU: 399-1M-SHA
Price: 399.99 USD
Availability: OutOfStock

Shakespeare 399-1M 9'6" VHF Antenna [399-1M]

$399.99

$399.99 $0.00

Shakespeare 399-1M 9'6" VHF Antenna [399-1M]

$399.99

$399.99 $0.00

Shipping calculated at checkout.

Style 399-1M VHF 6dB

Collinear Phased 5/8-wave with two coaxial chokes to suppress cable radiation

The Style 399-1M is the same as the 399-1, but it has a special sleeve for mast mounting. A professional quality antenna in a compact package. This extra-duty antenna combines strength and performance for use where you really need the efficiency of a large antenna, but don't have room for one.

Brass and copper elements
Chrome-plated brass ferrule with standard 1"-14 thread
Aluminum sleeve for mast mounting
Suggested mount: 1-1/4" U-bolts are supplied. The 399-1M can be strapped to a larger mast using steel banding (not supplied)

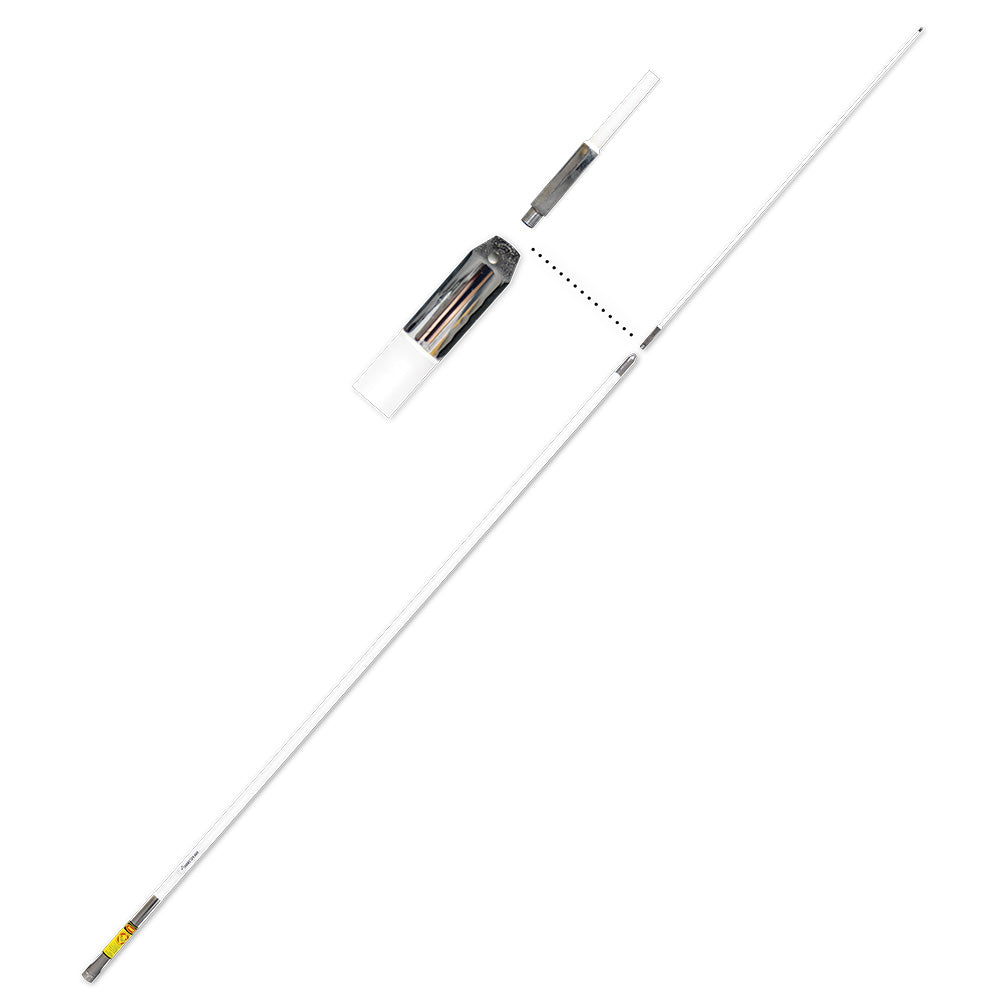

Two sections: Base 75"; Tip 39" UPS shippable

Technical Specifications:

Frequency:	VHF Marine band
Bandwidth:	(within 2.0:1 SWR): 5MHz
SWR:	1.5:1 at 156.8 MHz
Impedance:	(ohms): 50
Gain:	6 dB
Max Input (Watts):	100
DC Ground:	YES
Termination:	SO - 239
Height (feet):	9.5
Polarization:	Vertical
Radiation pattern:	Omni-directional

Specifications:

Antenna Band: VHF
Color: White
Construction: Fiberglass
Ferrule Type: Chrome Plated
Length (Inches): 114"
Box Dimensions: 5"H x 5"W x 88"L WT: 5.2 lbs
UPC: 719441100032

Quick Guide (pdf)
