Name: Blue Sea 6010200 Battery Switch Dual Circuit - Black [6010200]
Brand: Blue Sea Systems
SKU: 6010200-BLU
Price: 70.29 USD
Availability: OutOfStock

Blue Sea 6010200 Battery Switch Dual Circuit - Black [6010200]

$70.29

$70.29 $0.00

Blue Sea 6010200 Battery Switch Dual Circuit - Black [6010200]

$70.29

$70.29 $0.00

Shipping calculated at checkout.

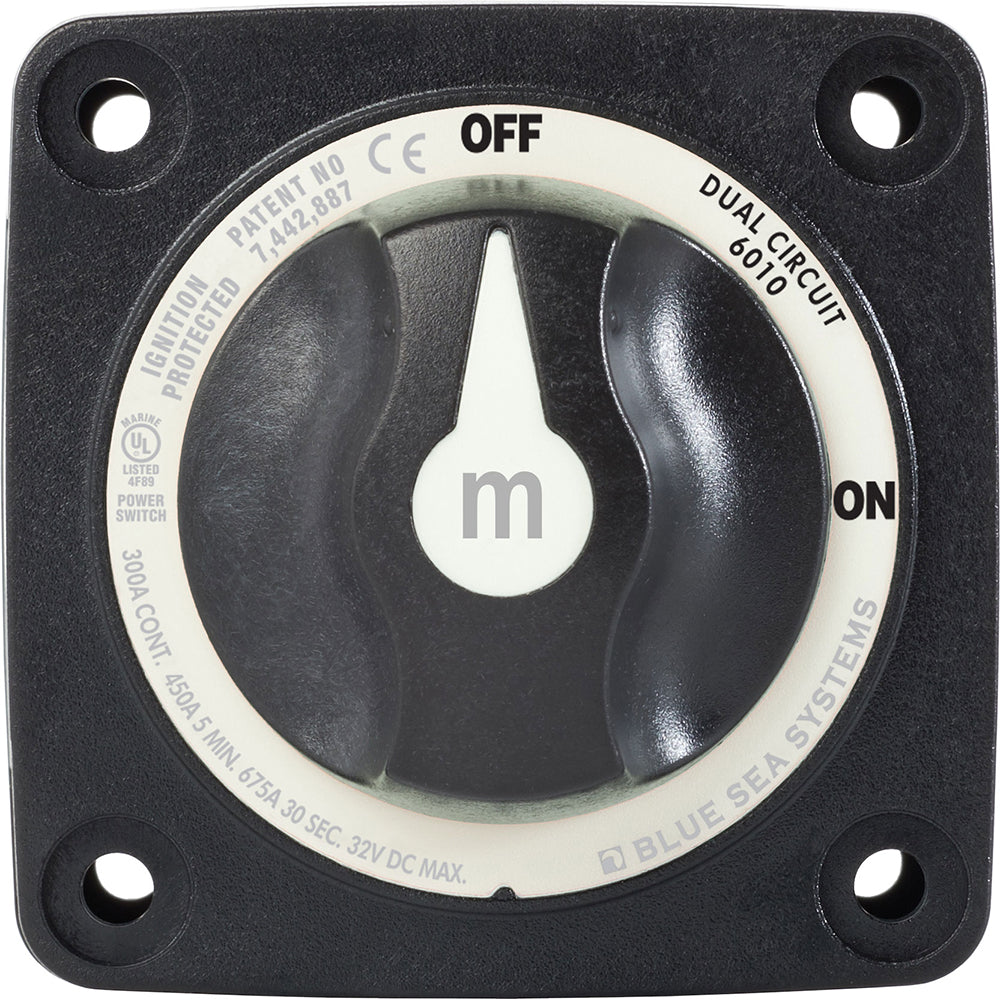

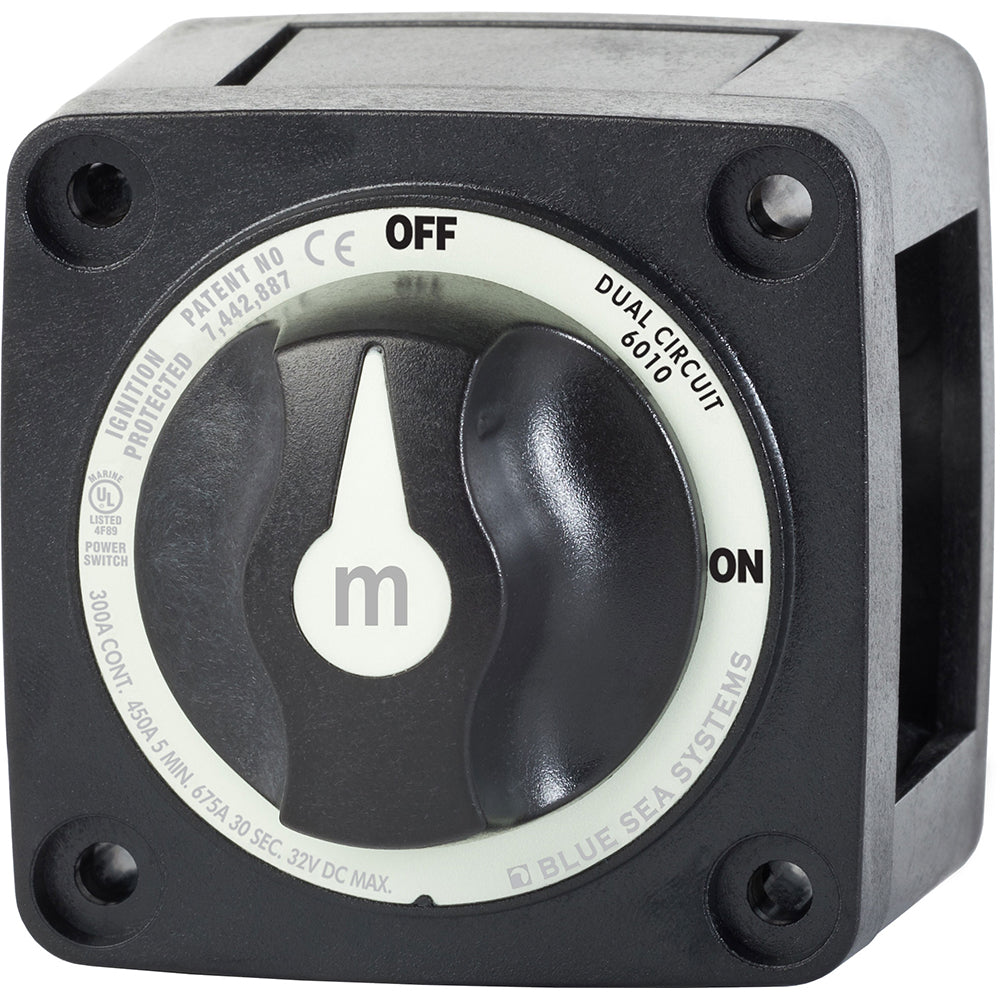

m-Series Mini Dual Circuit Battery Switch - Black

Simultaneously switches two isolated battery banks.

Switch Type: Dual Circuit
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Continuous Rating : 300A
Intermittent Rating : 450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw

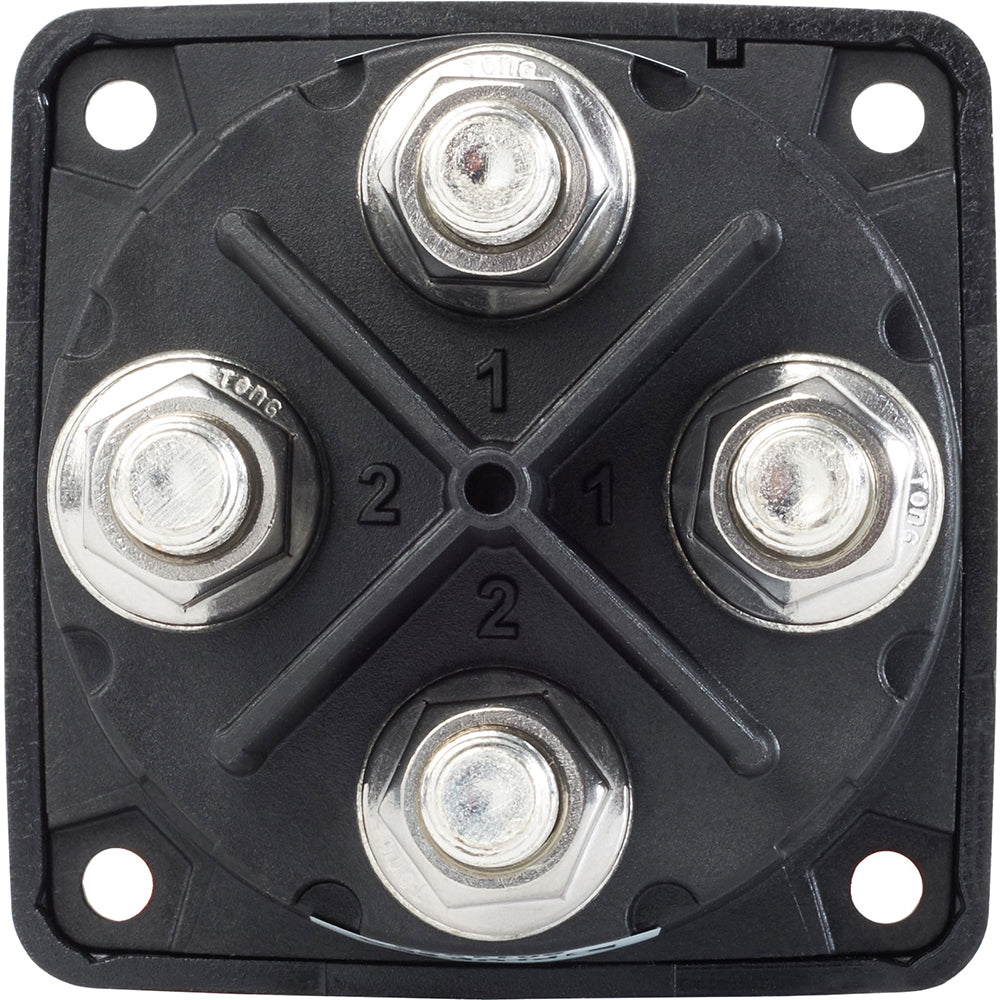

Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.80lb (0.36 kg)

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

AFD: No
Continuous Amperage: 300a
Box Dimensions: 3"H x 4"W x 7"L WT: 0.6 lbs
UPC: 632085601027

Owner's Manual (pdf)
