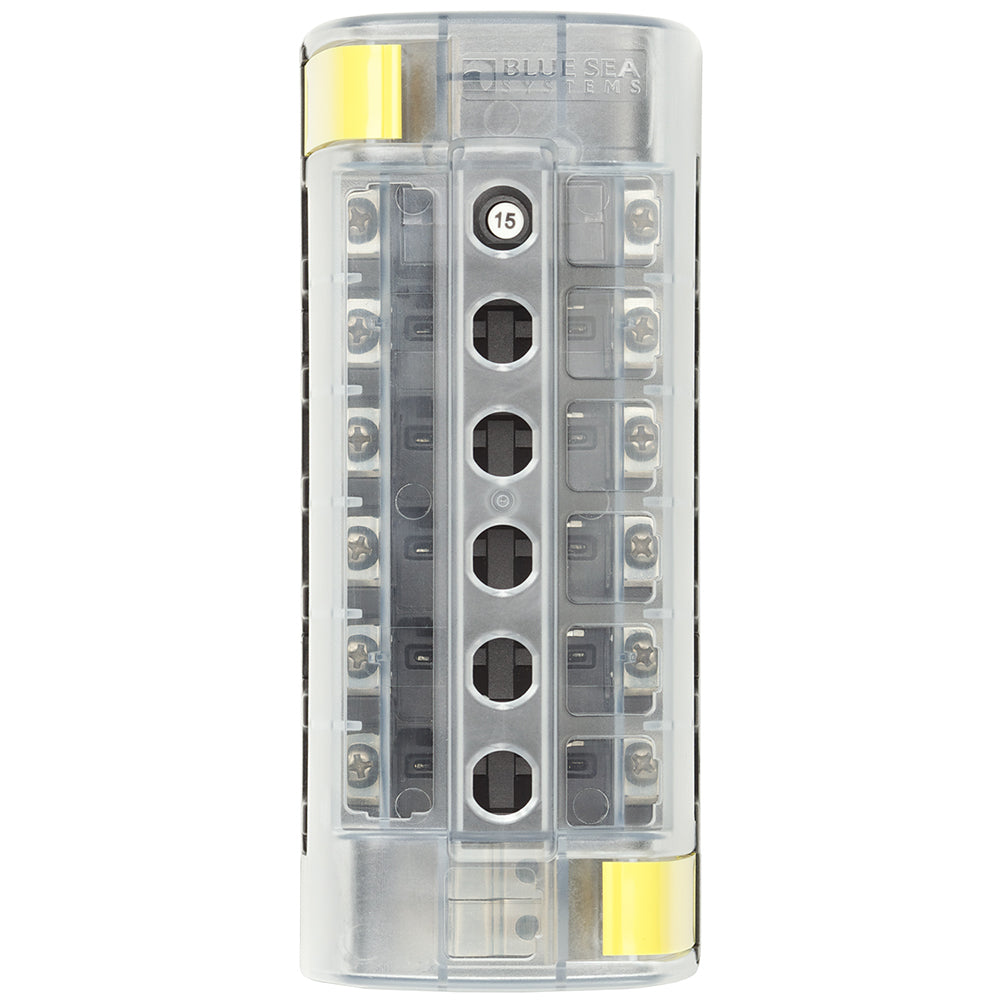

ST CLB Circuit Breaker Block - 6 Position

Features

Quick connect clips allow circuit breakers to snap easily into place
Tin-plated copper busses and screw terminals

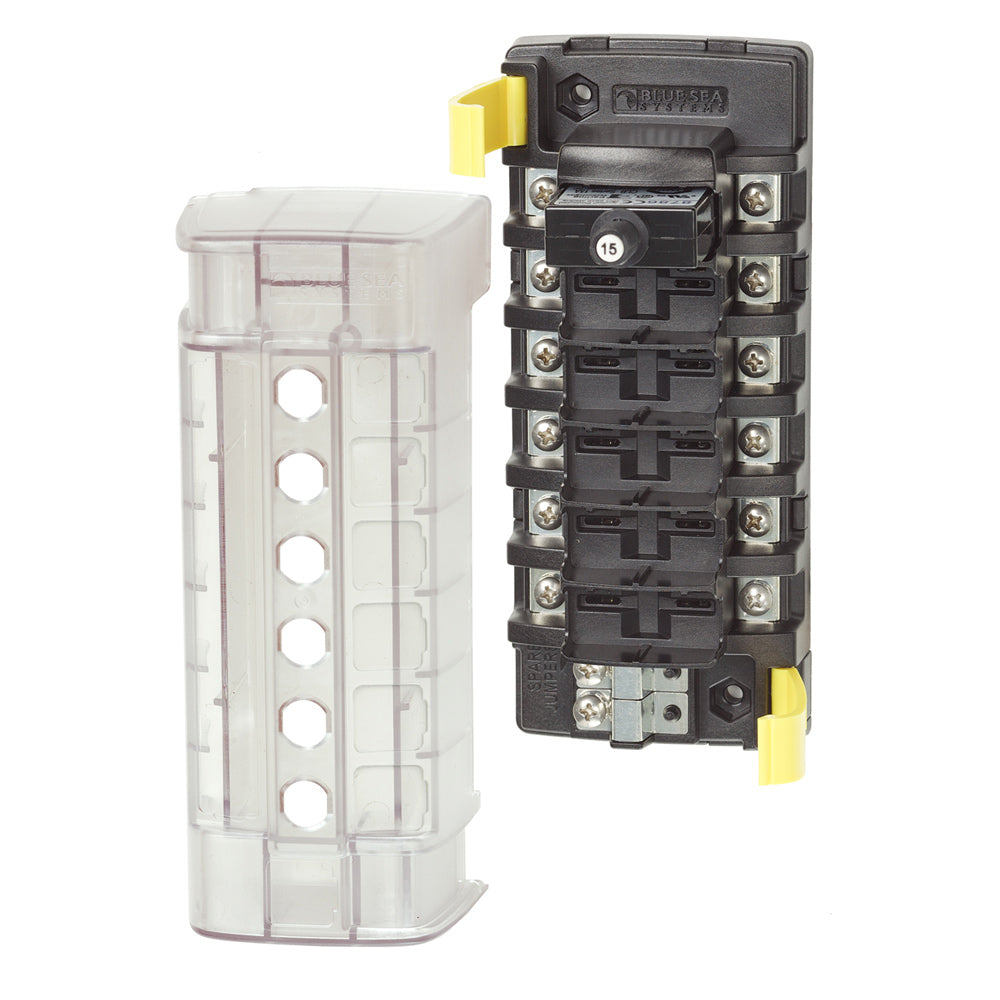

Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
Easy to open clip on cover
Breakouts allow wire access in two directions
Accepts ring terminals
Optional push button waterproof boots or dress nuts can be installed over cover

Specifications:
Circuits: 6
Maximum Amperage: 32A (per circuit) 40A (per jumped circuit group)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Source: Independent SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

Amperage: 32/40a
Box Dimensions: 3"H x 5"W x 11"L WT: 0.8 lbs
UPC: 632085050504

Brochure (pdf)
