Name: Wichard Thimble Shackle - Captive Pin - Diameter 8mm - 5/16" [1494W]
Brand: Wichard Marine
SKU: 1494W-WIC
Price: 89.73 USD
Availability: OutOfStock

Wichard Thimble Shackle - Captive Pin - Diameter 8mm - 5/16" [1494W]

$89.73

$89.73 $0.00

Wichard Thimble Shackle - Captive Pin - Diameter 8mm - 5/16" [1494W]

$89.73

$89.73 $0.00

Shipping calculated at checkout.

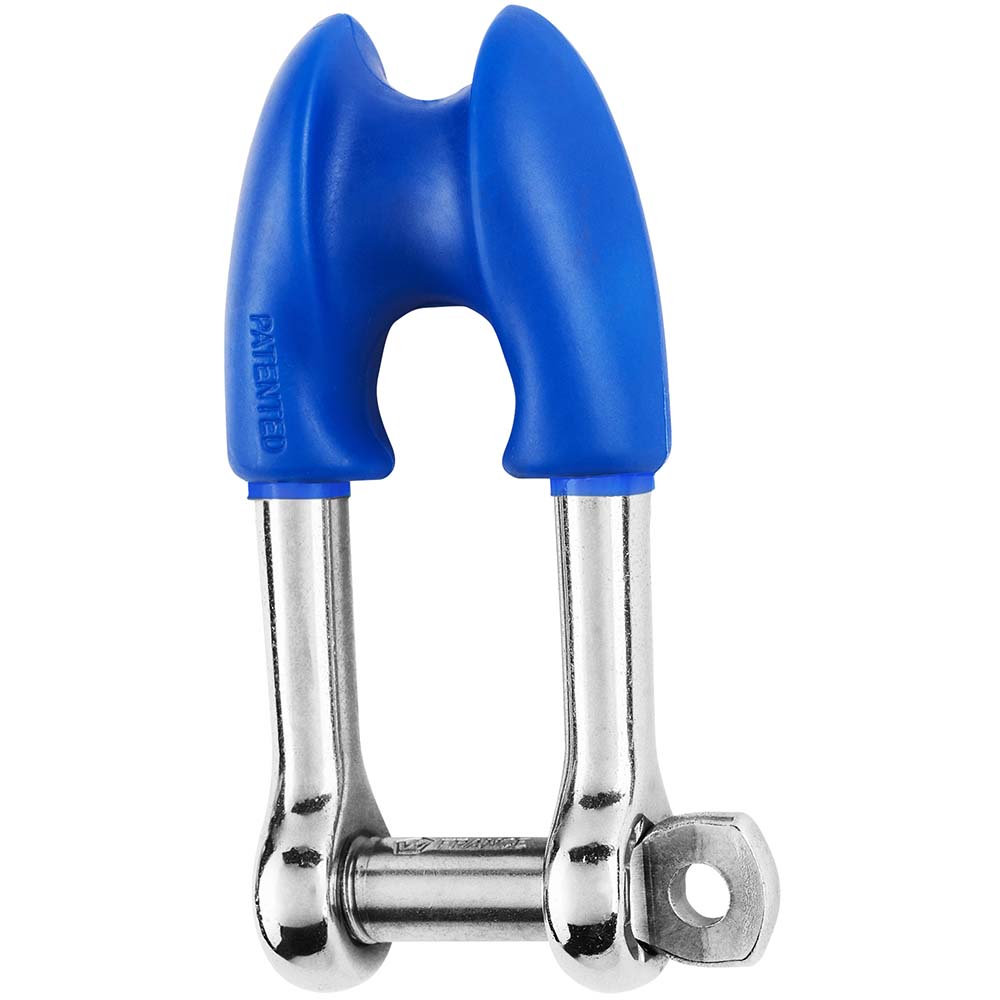

Thimble Shackle - Captive Pin - Diameter 8mm - 5/16"

Features:

Thimble shackle with captive pin forged in grade 316L stainless steel
Allows to spliced a rope without adding an additional thimble
With the captive pin, no risk to lose the pin
Outstanding working and breaking loads

Applications:

Mainsheet halyards
Max rope size: 12mm

Specifications:

Materials 316 stainless steel grade
Working load (lb) 2200
Breaking load (lb) 6610
Weight (lb) 0.172

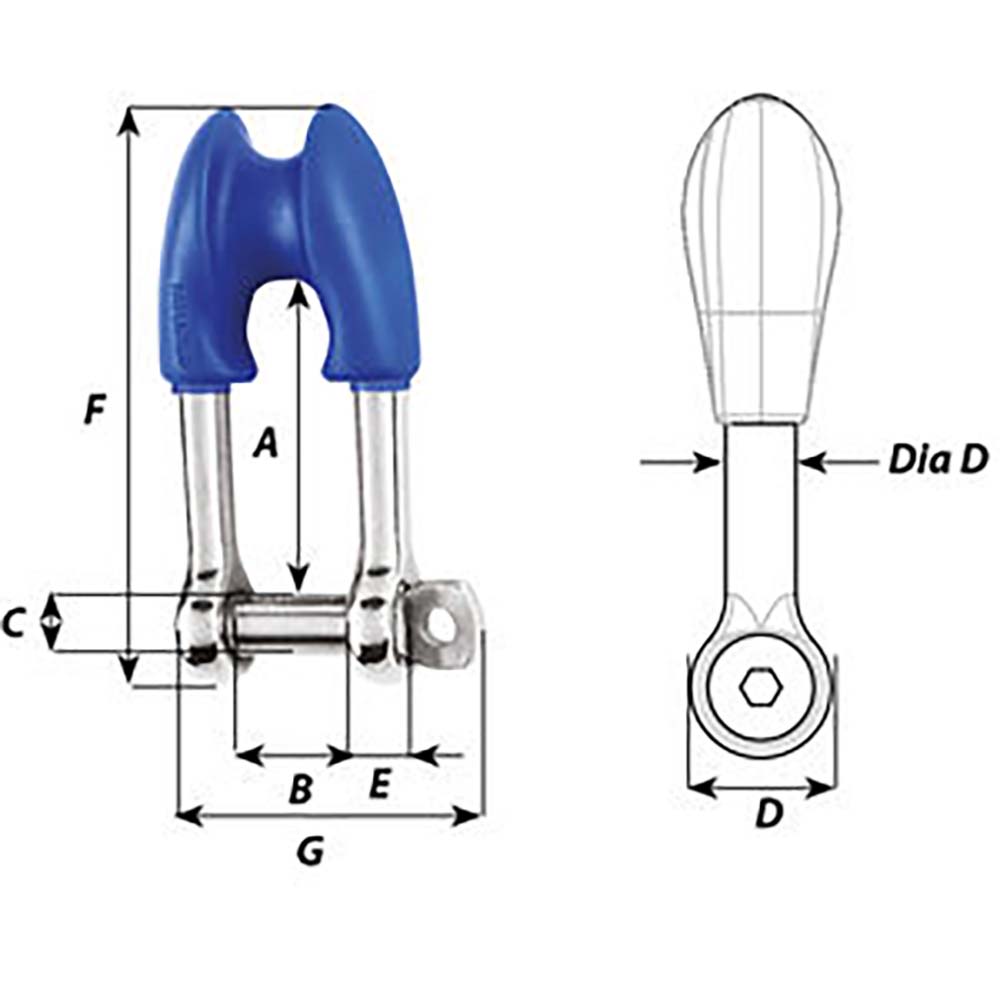

Dimensions (see 2nd image):

A (inch) 1-39/64"
B (inch) 5/8"
C (inch) 5/16"
D (inch) 5/8"
D diameter (inch) 5/16"
E (inch) 9/32"
F (inch) 2-63/64"
G (inch) 1-21/32"

This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.
