Self-Locking Large Shackle - Diameter 5mm - 3/16"

Features:

Self-locking large shackle forged in grade 316L stainless steel
The pin is locked into one of the indentations
No risks of loosening due to vibrations
Outstanding working and breaking loads
WLL: only for industrial applications (lifting i.e…)
CE marking and batch number

Applications:

For applications where a large opening shackle is required

Specifications:

Materials 316 stainless steel grade
Working load (lb) 550
WLL (lb) 480
Breaking load (lb) 2420
Weight (lb) 0.035

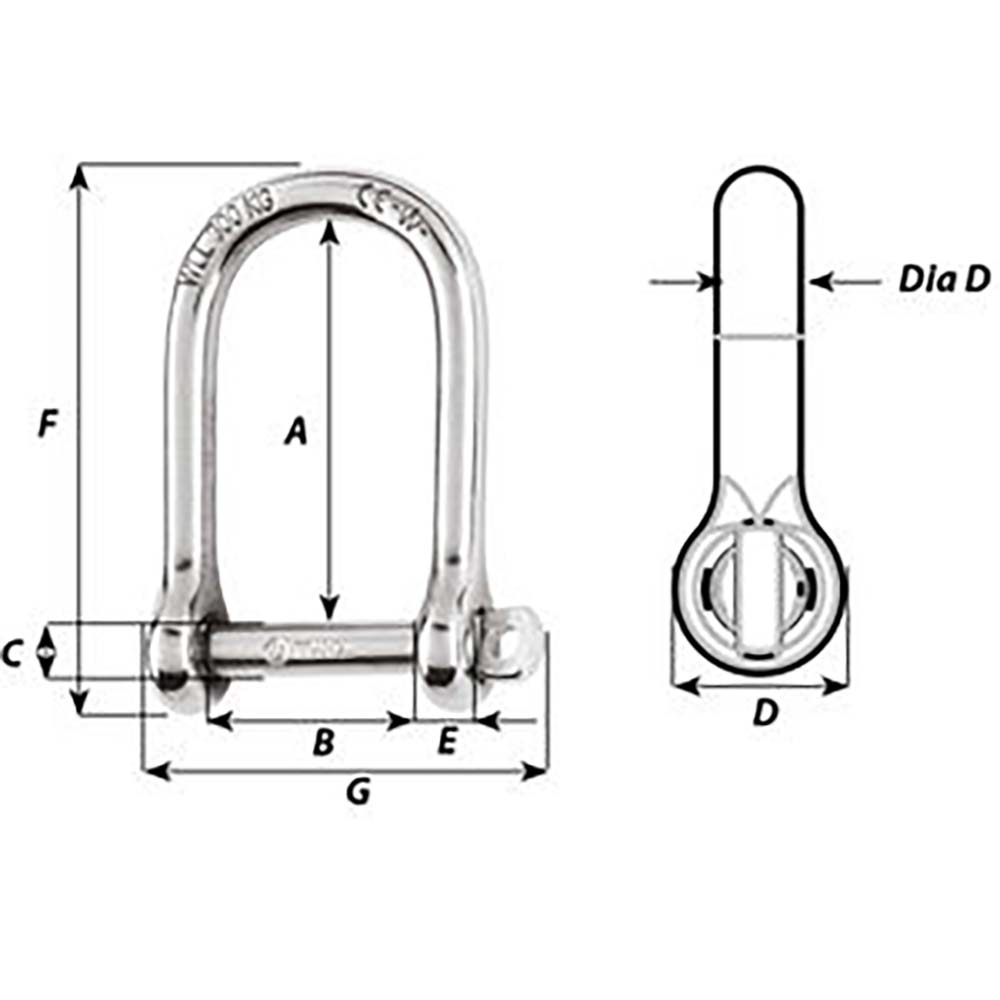

Dimensions (see 2nd image):

A (inch) 1-27/64"
B (inch) 25/32"
C (inch) 13/64"
D (inch) 7/16"
D diameter (inch) 13/64"
E (inch) 13/64"
F (inch) 1-57/64"
G (inch) 1-3/8"
