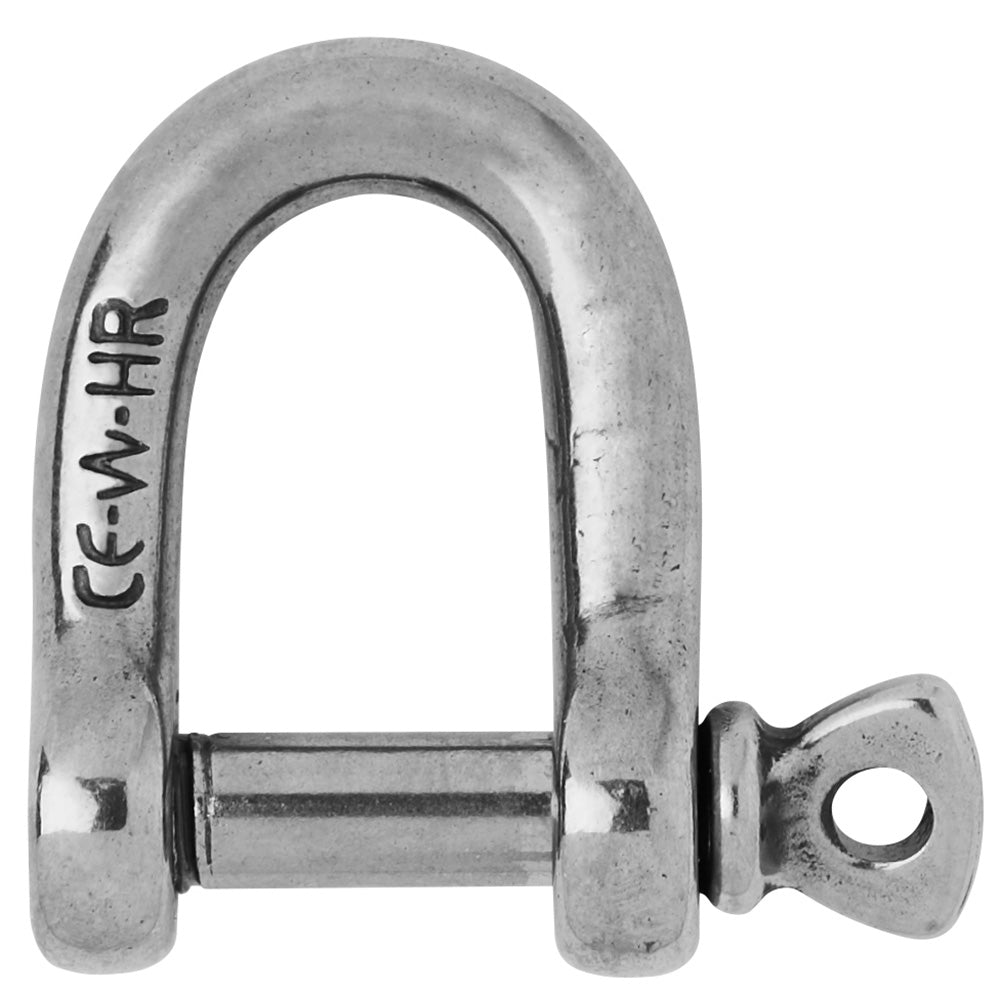

Name: Wichard HR D Shackle - Diameter 1/4" [11203W]
Brand: Wichard Marine
SKU: 11203W-WIC
Price: 55.18 USD
Availability: OutOfStock

Wichard HR D Shackle - Diameter 1/4" [11203W]

$55.18

$55.18 $0.00

Wichard HR D Shackle - Diameter 1/4" [11203W]

$55.18

$55.18 $0.00

Shipping calculated at checkout.

HR D Shackle - Diameter 15/64"

Features:

Forged D shackle in HR stainless steel grade (17,4 PH)
Outstanding working and breaking load
An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
WLL: only for industrial applications (lifting i.e…)
CE marking and batch number

Applications

Applications requesting high loads
Standard applications of the shackle
Attachment applications: blocks, head
Do not use it for mooring applications

Specifications:

Materials HR 17.4 PH stainless steel grade
Working load (lb) 2290
WLL (lb) 1010
Breaking load (lb) 5070
Weight (lb) 0.053

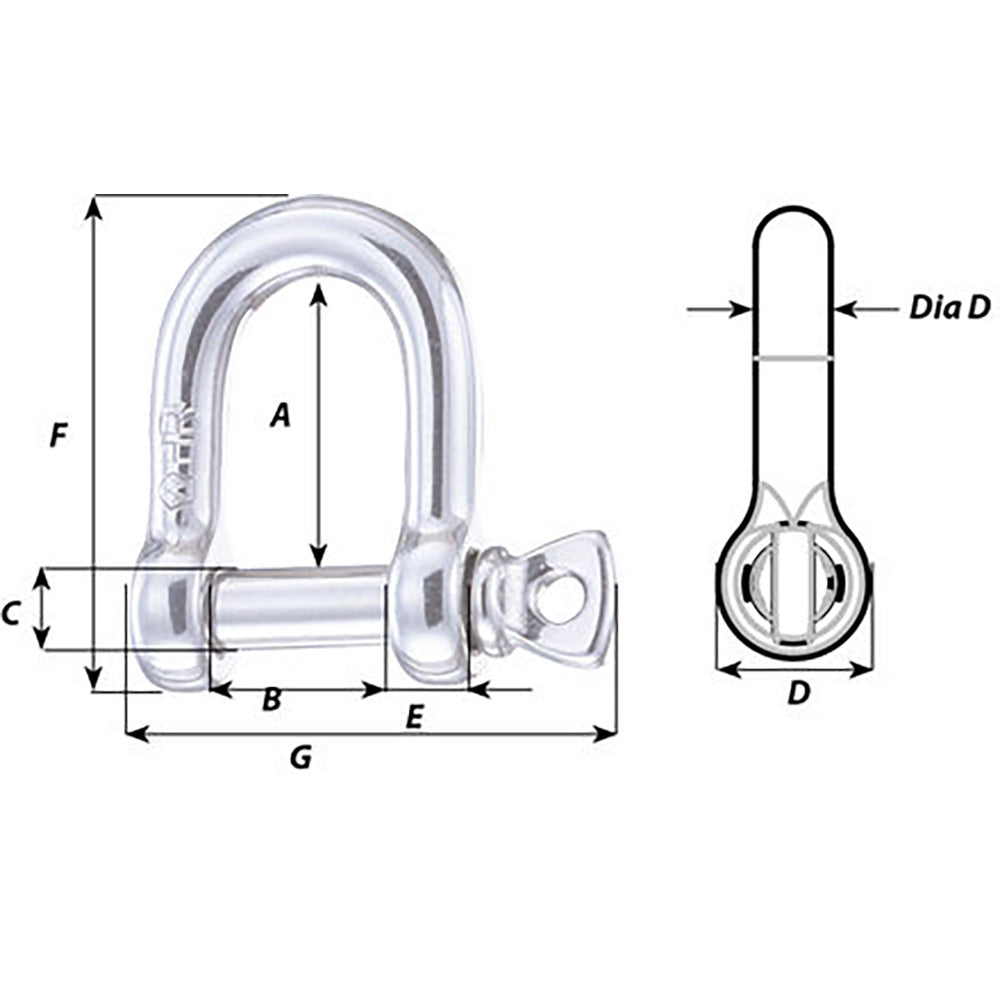

A (inch) 25/32"
B (inch) 15/32"
C (inch) 15/64"
D (inch) 5/8"
D diameter (inch) 15/64"
E (inch) 9/32"
F (inch) 1 13/16"
G (inch) 1 13/16"
