Name: Wichard Captive Pin D Shackle - Diameter 10mm - 13/32" [1405W]
Brand: Wichard Marine
SKU: 1405W-WIC
Price: 80.87 USD
Availability: OutOfStock

Wichard Captive Pin D Shackle - Diameter 10mm - 13/32" [1405W]

$80.87

$80.87 $0.00

Wichard Captive Pin D Shackle - Diameter 10mm - 13/32" [1405W]

$80.87

$80.87 $0.00

Shipping calculated at checkout.

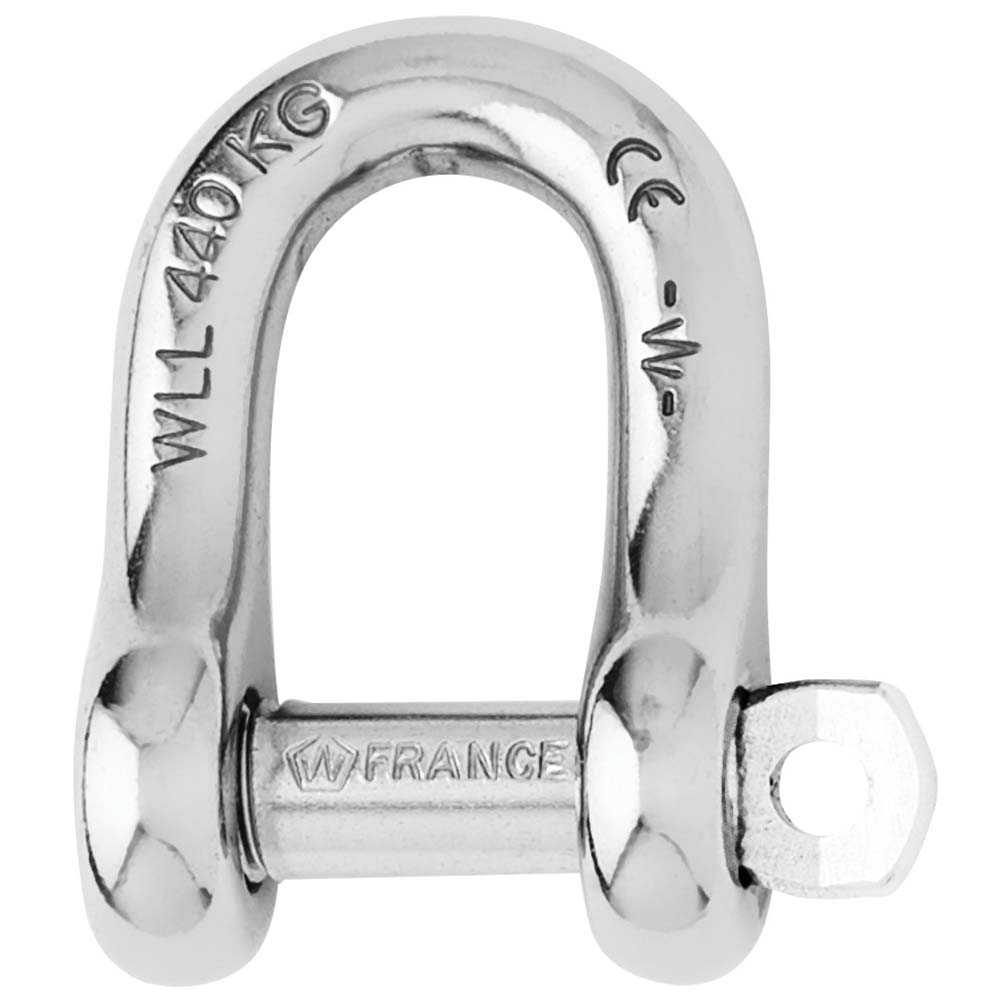

Captive Pin D Shackle - Diameter 10mm - 13/32"

Features:

Captive pin "D" shackle forged in grade 316L stainless steel
The pin is connected to the body at all times even when opened
The pin is locked into one of the indentations
No risks of loosening due to vibrations
Outstanding working and breaking loads

Applications:

Standard applications of shackle
Attachment applications: blocks, head...

Specifications:

Materials 316 stainless steel grade
Working load (lb) 3350
WLL (lb) 2290
Breaking load (lb) 11460
Weight (lb) 0.251

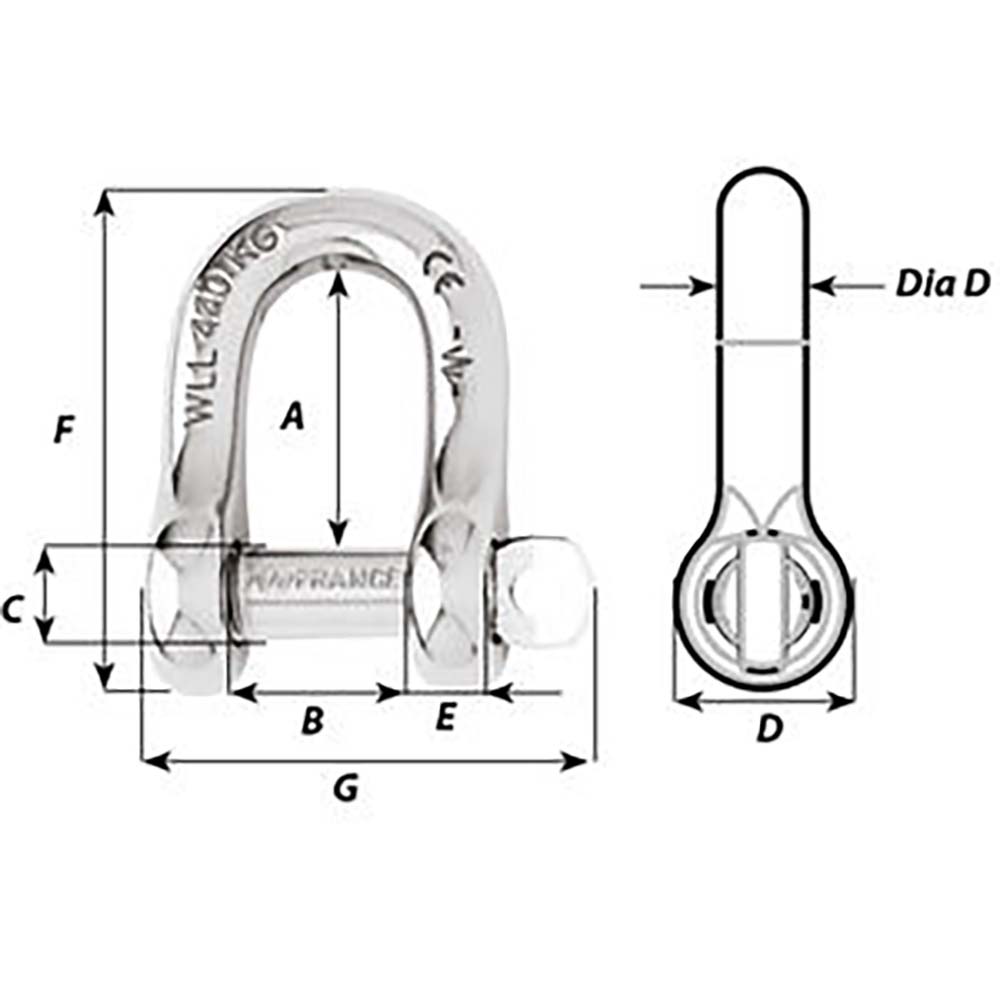

Dimensions (see 2nd image):

A (inch) 1-19/64"
B (inch) 25/32"
C (inch) 7/16"
D (inch) 53/64"
D diameter (inch) 25/64"
E (inch) 23/64"
F (inch) 2-9/32"
G (inch) 2-3/32"
