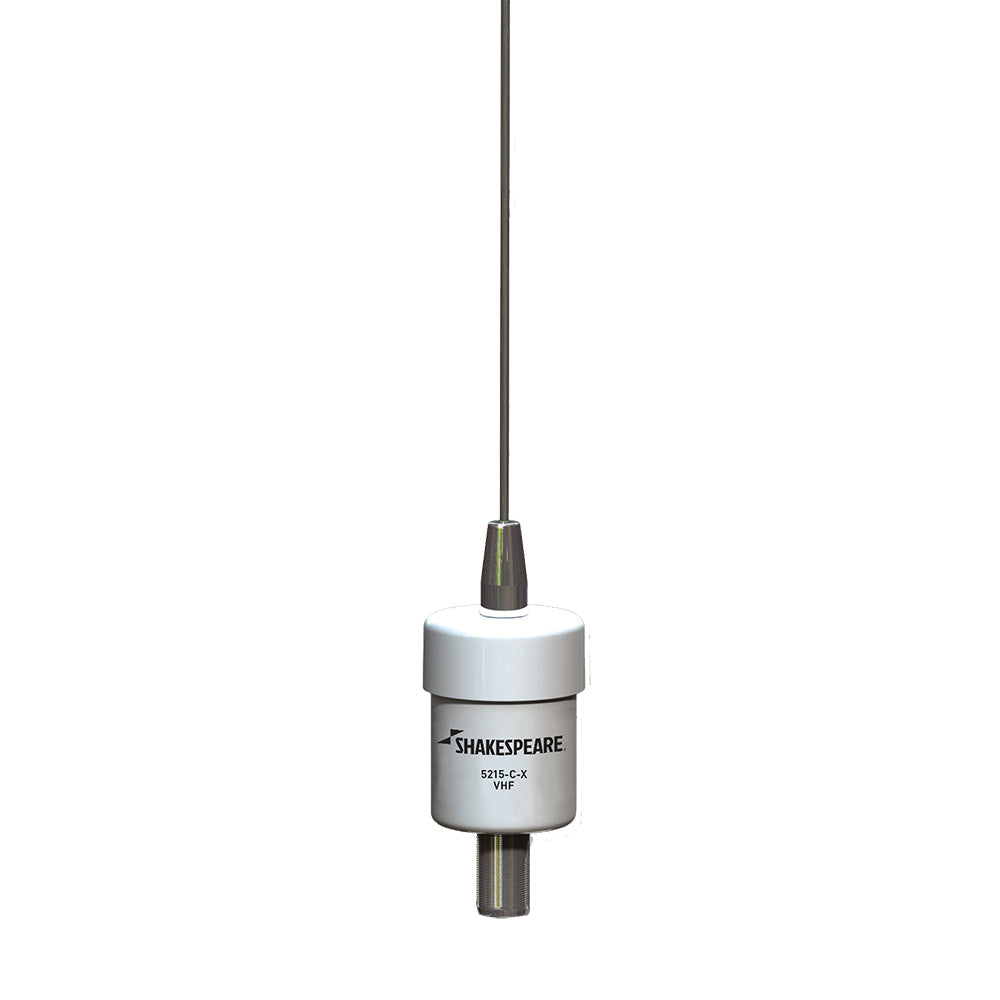

Name: Shakespeare 5215-C-X 3' VHF Antenna [5215-C-X]
Brand: Shakespeare
SKU: 5215-C-X-SHA
Price: 179.99 USD
Availability: OutOfStock

Shakespeare 5215-C-X 3' VHF Antenna [5215-C-X]

$179.99

$179.99 $0.00

Shakespeare 5215-C-X 3' VHF Antenna [5215-C-X]

$179.99

$179.99 $0.00

Shipping calculated at checkout.

Shakespeare Style 5215-C-X SQUATTY BODY® VHF Marine
36" LENGTH, 3dB

END-FED 1/2-WAVE STAINLESS STEEL WHIP

Same as the Style 5215 but comes with 60' RG-8/X low-loss cable and PL-259 connectors.

A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.

Hermetically sealed, tin-plated copper wire coil
Stainless steel body and whip
SO-239 connector
Includes 60' RG-8/X low-loss cable and PL-259 connectors.
Mount: Stainless steel "L" bracket supplied, for mast mounting
One section
Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency:	VHF Marine band
Bandwidth:	7 MHz
SWR:	1.5:1 @ 156.8 MHz
Impedance:	(Ohms): 50
Gain:	3 dB
Max Input (Watts):	50
DC Ground:	NO
Termination:	60' RG-8X cable
Height (feet):	3'
Polarization:	Vertical
Radiation pattern:	Omni-directional

Specifications:

Antenna Band: VHF
Color: Stainless
Construction: Stainless Steel
Length (Inches): 36"
Box Dimensions: 4"H x 4"W x 44"L WT: 4.2 lbs
UPC: 719441100155

Quick Guide (pdf)
