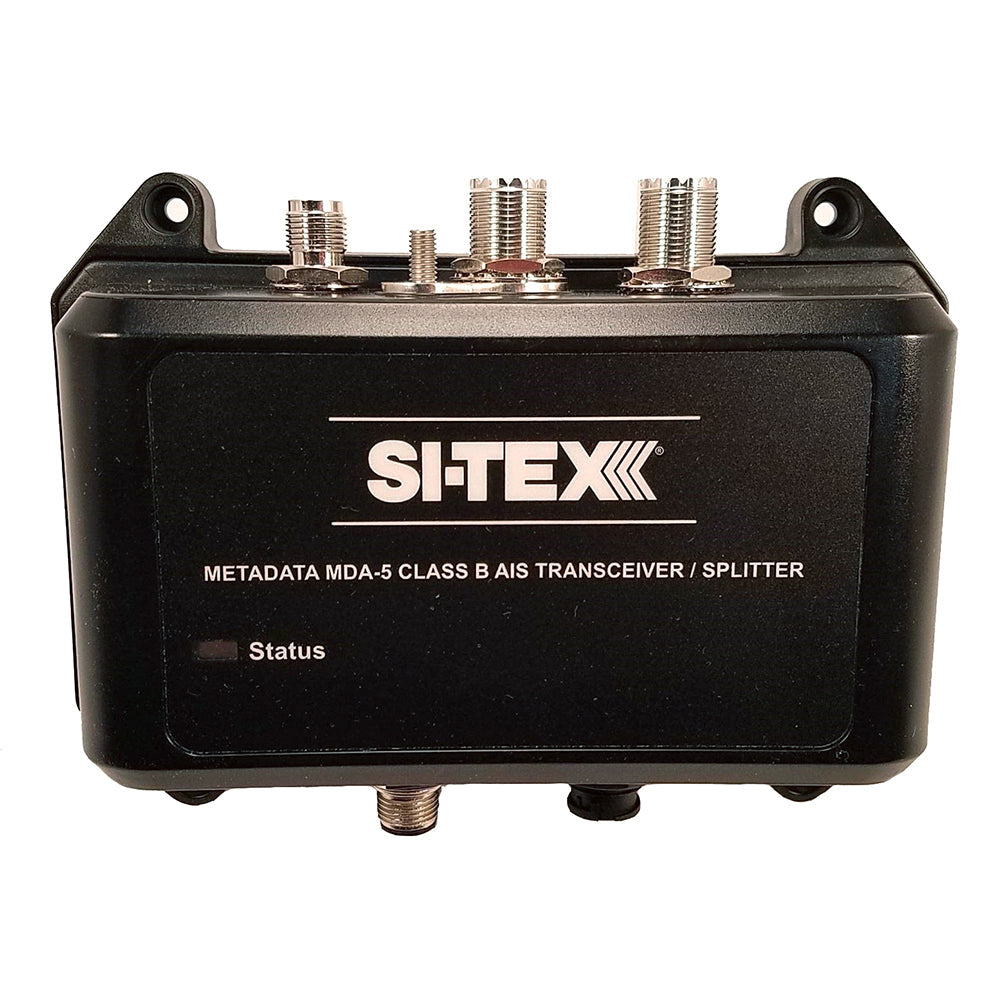

Name: SI-TEX MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi
Brand: SI-TEX
SKU: S-MDA-5-SI-
Price: 1283.88 USD
Availability: InStock

SI-TEX MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi

$1,283.88

$1,283.88 $1,429.00

SI-TEX MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi

$1,283.88

$1,283.88 $1,429.00

Shipping calculated at checkout.

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter & Long Range Wi-Fi

Features:

The MDA-5 is the world's most sophisticated fully certified 5-Watt SOTDMA Class B AIS Moble on the market
5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don"t have network priority.
Intergrated zero loss VHF antenna splitter - no second antenna needed
Built-In 802.11 b/g/n Long Range WIFI allows unit to send AIS and Position data to any WIFI connected devices
NMEA-0183 data port, NMEA-2000 & USB intelligent connectivity to all bridge systems
Built-In GPS & GLONASS satellite navigation receiver
Water Proof certified to IPX7
Dual Receivers decodes all DSC & AIS messages, including MOB & SART
Ultra-power efficient
IEC-62287-2, FCC and USCG certified
2 Year Warranty

Package Includes:

Commercial Grade External GPS Antenna with Coax Cable
Mounting hardware
Power & Data Interface cable
VHF Radio Connection cable
Product Information DVD, with ProAis2 Software for Programming & Troubleshooting
User Manual & Quick Start Guide

Specifications:

Transmitter Output Power: 5 Watts
VHF Antenna Connector SO-239 UHF
GPS Antenna Connector TNC
Frequency Range: 156.025-162.025 Mhz
Input Voltage: 9.6-31.2 VDC
Current Draw: 220mA average power consumption
Operating Temperature Range: -25C to +55xC
Ingress Protection: IP67
Dimensions (transceiver): 6.8" W x 5.0" H x 2.0" D
Weight 0.8 lbs.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Quick Guide (PDF)
Owner's Manual (PDF)
