Name: Raymarine AR200 IP Camera Stabilization Module
Brand: RAYMARINE
SKU: S-E70537-RAY
Price: 655.61 USD
Availability: InStock

Raymarine AR200 IP Camera Stabilization Module

$655.61

Raymarine AR200 IP Camera Stabilization Module

$655.61

Shipping calculated at checkout.

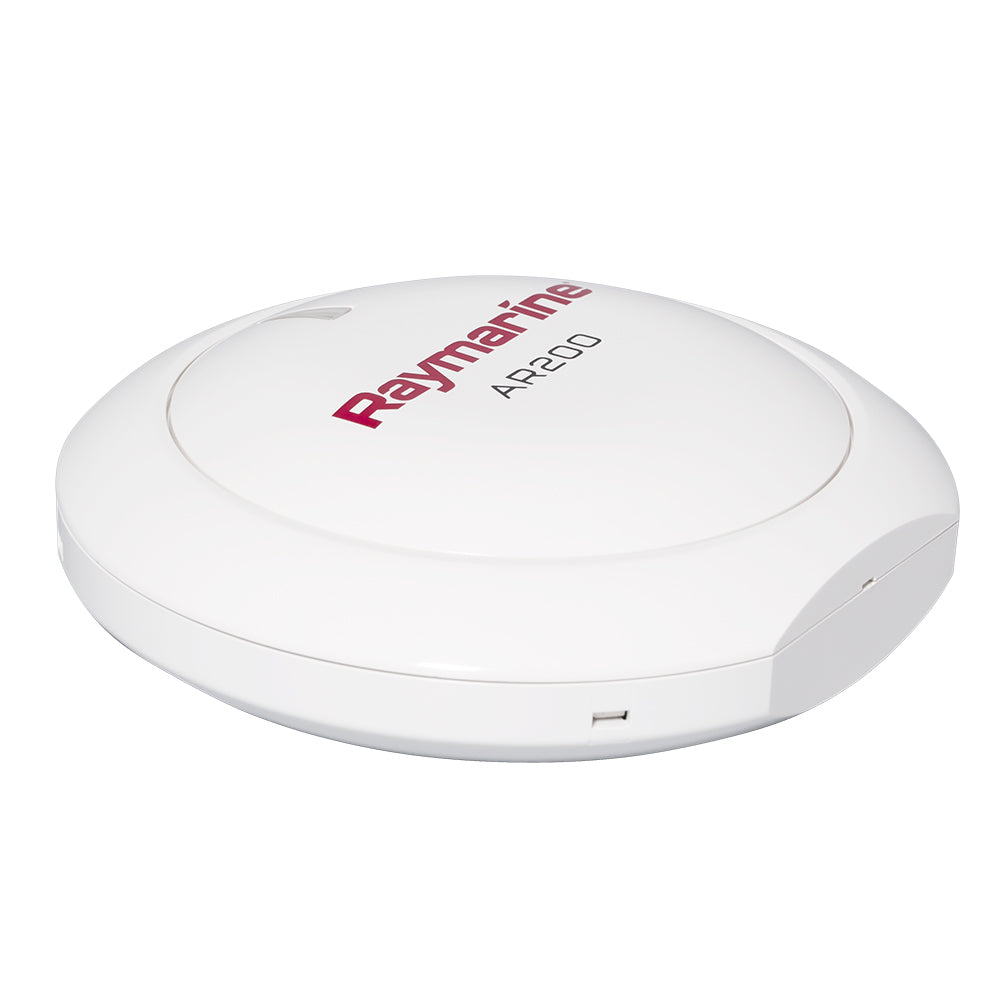

AR200 IP Camera Stabilization Module

The AR200 is an Augmented Reality Sensor consisting of a Global Navigation Satellite Systems (GNSS) Receiver and an Attitude and Heading Reference System (AHRS) sensor. The AR200 provides position, heading, pitch and roll data to compatible Axiom MFDs. When combined with a compatible IP camera the AR200 enables use of the ClearCruiseâ„¢ Augmented Reality features available on your Axiom MFD.â€

Features:

9-axis AHRS (attitude and heading reference system) sensor
28-channel GPS receiver
Fast 10Hz position updates
Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
When combined with a compatible IP camera the AR200 enables the use of ClearCruise Augmented reality features available on Axiom multifunction displays
NMEA 2000 compliant
IPX6 / IPX7 waterproof rating

In the Box:

Mounting trim (top)
Small sealing ring
AR200
x3 large bulkhead bracket fixings (pan head pozi DIN7981-ST 3.9x22 C Z A4 Stainless steel)
Mounting tray (bottom)
x4 small surface mount fixings (pan head pozi DIN7981-ST 2.9x13 C Z A4 Stainless steel)
Bulkhead (wall) bracket
Large sealing ring
Documentation
6m (19.7ft) SeaTalkNG white cable
