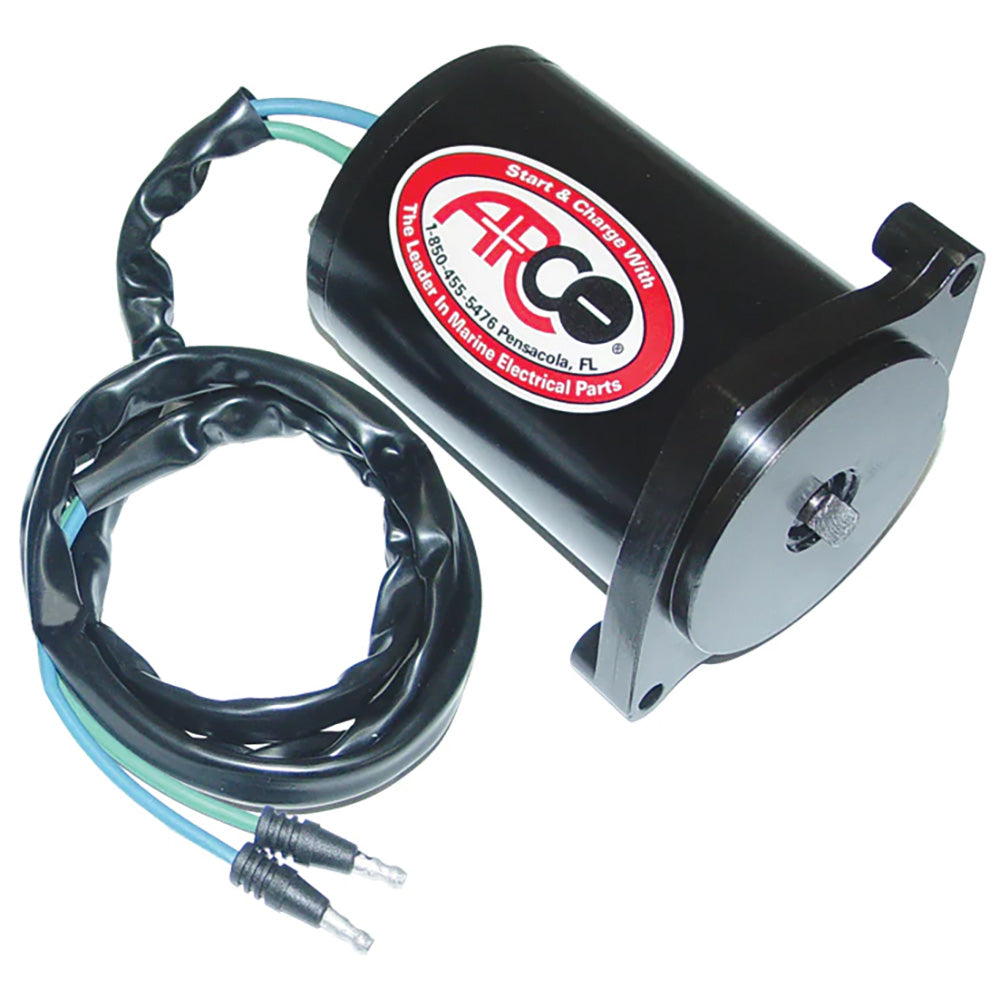

ARCO Marine Replacement Outboard Tilt Trim Motor - Late Model Mercury, 2-Wire

Replacement Outboard Tilt Trim Motor - Late Model Mercury, 2-Wire

Replacement outboard tilt trim motor that will fit late model Mercury 135, 150 XR6, Magnum lll, 175, 200, 225, 250 HP, 105-140 HP Jet, 2-wire connection, 2-bolt mount, Includes O-ring, Flat-blade shaft, Bullet Connector Terminal Ends.

ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.

Features:

• Tilt trim motors are dynamically tested to ensure out-of-the-box performance
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance
• Epoxy Powder coated for maximum insulation protection

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

MERCURY Tilt Trim Motor 8M0031551
MERCURY Tilt Trim Motor 8M0060140
MERCURY Tilt Trim Motor 828708
MERCURY Tilt Trim Motor 828708T
MERCURY Tilt Trim Motor 878265A1
MERCURY Tilt Trim Motor 878265A4
SIERRA Tilt Trim Motor 18-6773
