Name: Navico xSonic SS75H Depth/Temperature Transducer 12 - 9-Pin - 600W - 10M Cable [000-13912-001]
Brand: Navico
SKU: 000-13912-001-NAV
Price: 921.00 USD
Availability: OutOfStock

Navico xSonic SS75H Depth/Temperature Transducer 12 - 9-Pin - 600W - 10M Cable [000-13912-001]

$921.00

$921.00 $0.00

Navico xSonic SS75H Depth/Temperature Transducer 12 - 9-Pin - 600W - 10M Cable [000-13912-001]

$921.00

$921.00 $0.00

Shipping calculated at checkout.

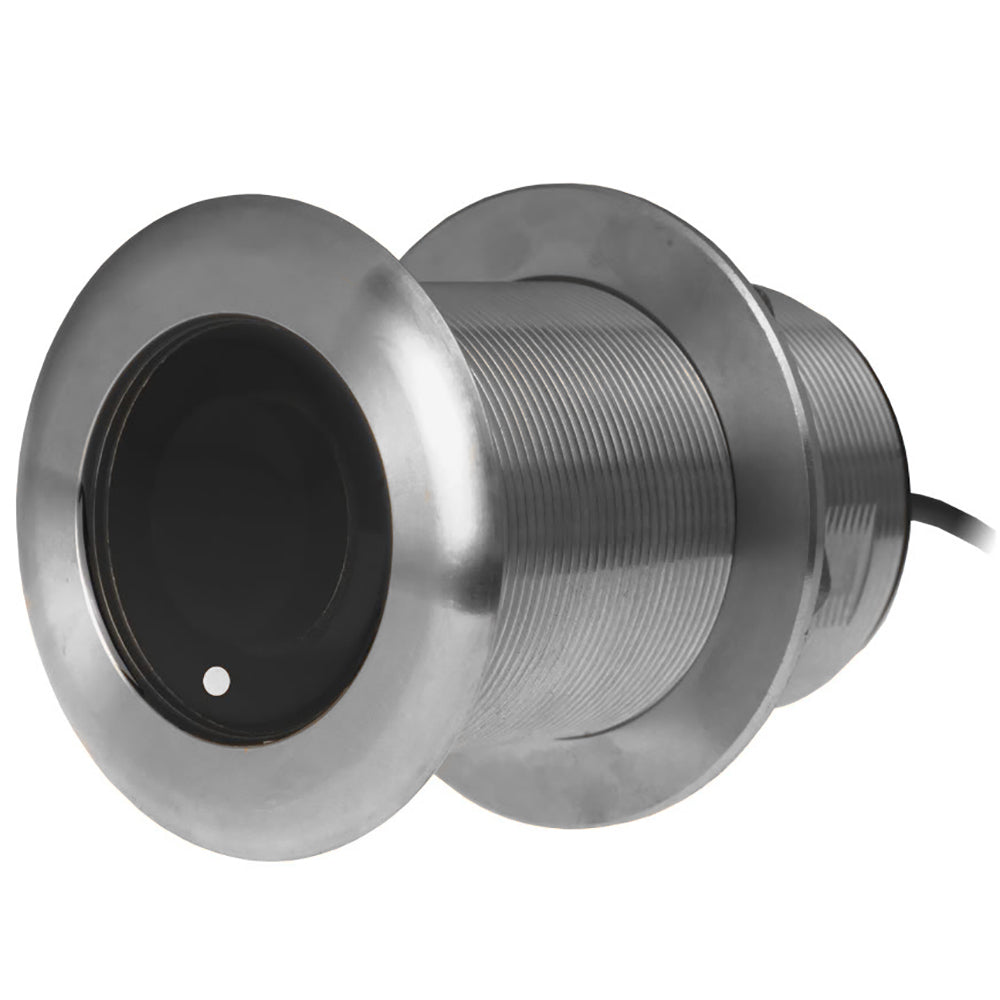

xSonic SS75H Depth/Temperature Transducer 12° - 9-Pin - 600W - 10M Cable

The SS75H is a Stainless Steel, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Features:

CHIRP - CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures
Depth/Temperature - Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings
Easy To Install
High Frequency - CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water
Highly Accurate - Provides extremely accurate data.
12° Tilt - The 12° tilt is ideal for boats with a 8° to 15° hull deadrise.
Low Profile - The low profile housing minimizes drag with just 5mm extending outside of the hull.
Plug & Play Connection - Easily connect to NSSevo3, Lowrance

Specifications:

Frequency: High CHIRP (130-210kHz)
Power Rating: 600W
Speed Sensor: No
Temperature Sensor: Yes
Mounting Style: Bronze Thru-Hull
Elements: 1
Beamwidth @ -3dB: 15° to 9°

Specifications:

Temperature: Yes
Speed Included: No
Mounting Style: Thru-Hull
Imaging: Standard
Chirp: High
Cable Length (Feet): 33'
Pins: 9
Box Dimensions: 5"H x 8"W x 12"L WT: 6 lbs
UPC: 9420024162675
