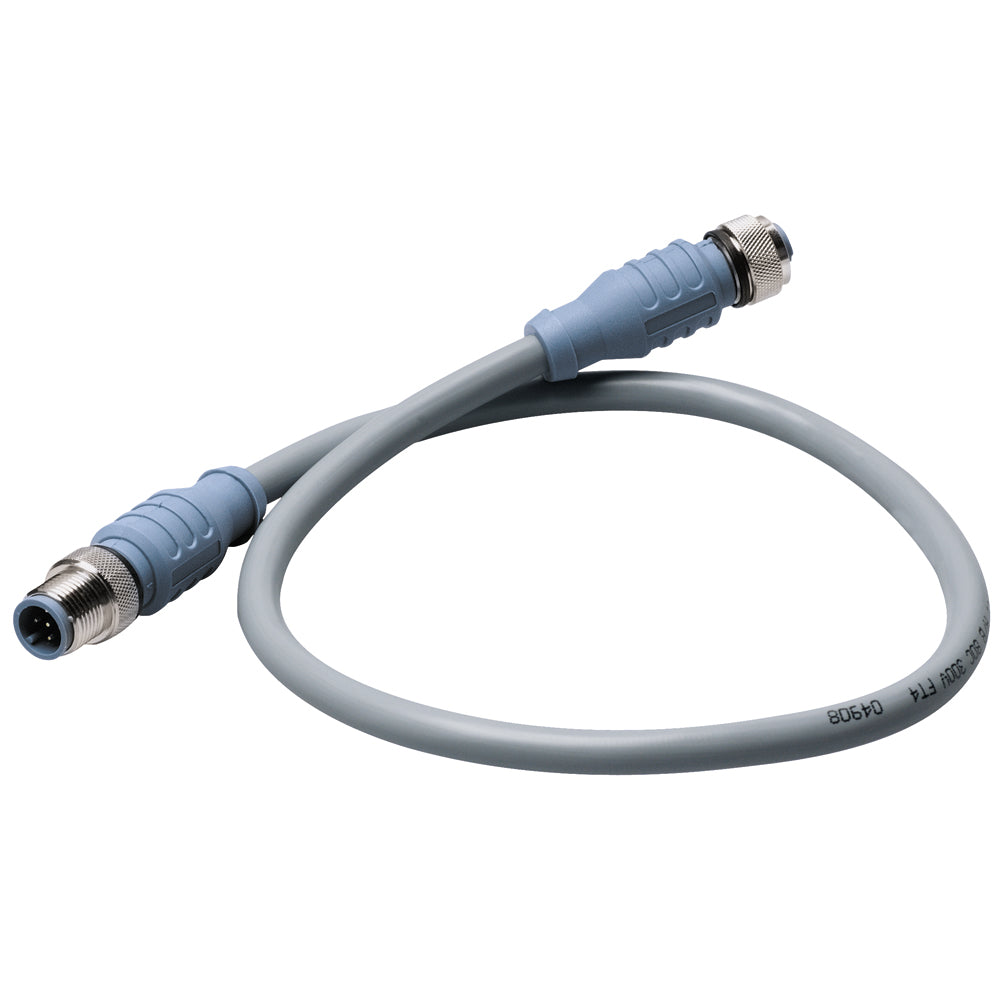

Name: Maretron Micro Double-Ended Cordset - 0.5M [CM-CG1-CF-00.5]
Brand: Maretron
SKU: CM-CG1-CF-00.5-MAR
Price: 30.00 USD
Availability: OutOfStock

Maretron Micro Double-Ended Cordset - 0.5M [CM-CG1-CF-00.5]

$30.00

$30.00 $0.00

Maretron Micro Double-Ended Cordset - 0.5M [CM-CG1-CF-00.5]

$30.00

$30.00 $0.00

Shipping calculated at checkout.

Micro Double-Ended Cordset - 0.5M

Mechanical

Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel
Connector Outside Diameter: 0.59" Electrical
Current Rating: 4.0 Amps
Voltage Rating: 250 V Cable
Outer Jacket Mat/Color: PVC/Gray
Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

Protection Class: IEC IP68, NEMA 1,3,4,6P
Temperature Rating: -40° C to 80° C to (-40° F to 176° F)Approvals
(Cable) UL: PLTC 75° C Sunlight Resistant E90625, AWM 80° C 300V
(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75° C, AWM I/II A/B 80C 300V FT4
NMEA: NMEA 2000 Approved

Specifications:

Data Interface: NMEA 2000
NMEA 2000 Connectors: Backbone/Drop Cables
Box Dimensions: 1"H x 5"W x 5"L WT: 0.1 lbs
UPC: 873804001500
