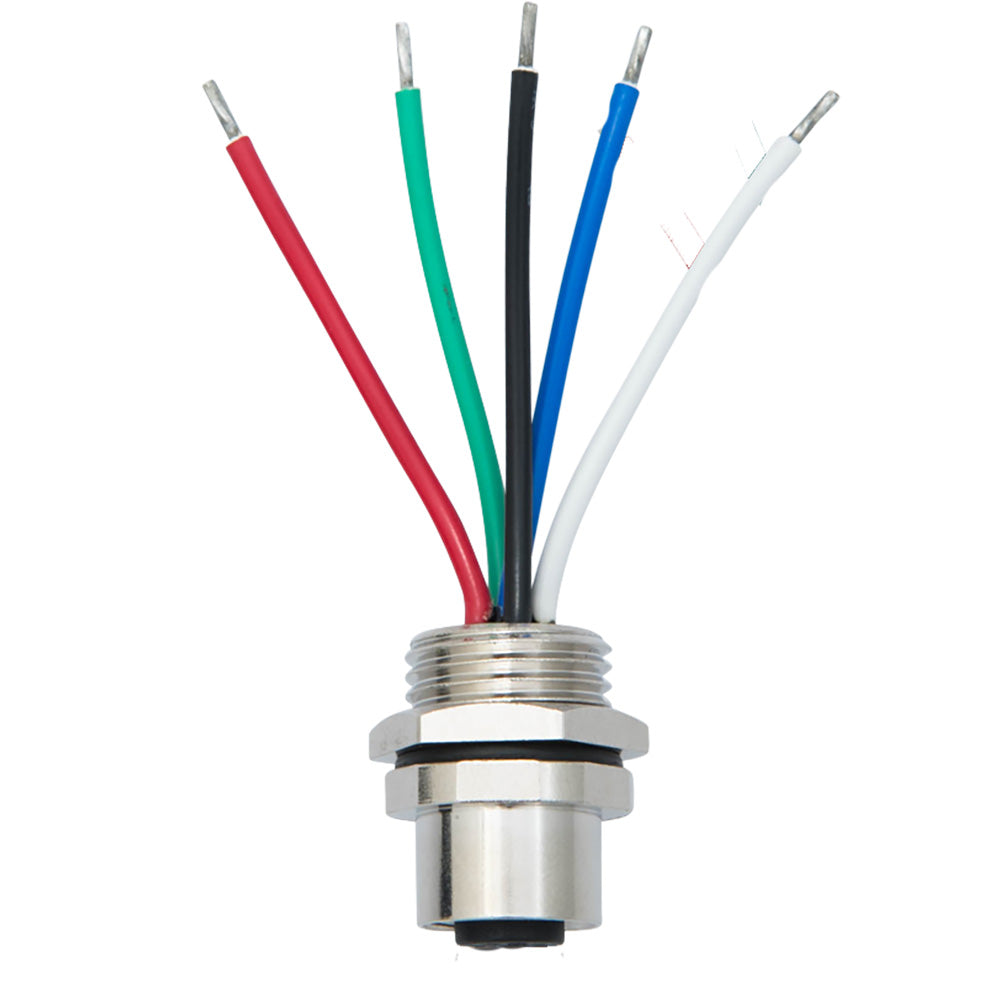

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Female

Panel-mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.

Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.

The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

Rated Current - 4A
Rated Voltage - 60VDC

Mechanical

Contacts - Brass, gold-plated
Contact Carrier - Nylon & GF
Contact Polarization - Standard M12-"A"-Polarization
Mating Thread - M12
Housing - Brass, nickel-plated
Mounting Thread - PG9
Mounting Nut - Brass, nickel plated - PG9
Mounting Hole Diameter - 15.3mm
Wires - 18 AWG (stripped and tinned)
Wire Jacket - PVC
Weight - 20g

Approvals and Certifications

Protection - IP67 (when mated)
Operating Temperature - -25°C to +90°C
Connector Specification - Meets IEC61076-2-101

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

Connection Gender: Female
Data Interface: NMEA 2000
Box Dimensions: 1"H x 5"W x 7"L WT: 0.05 lbs
UPC: 5060998710157
